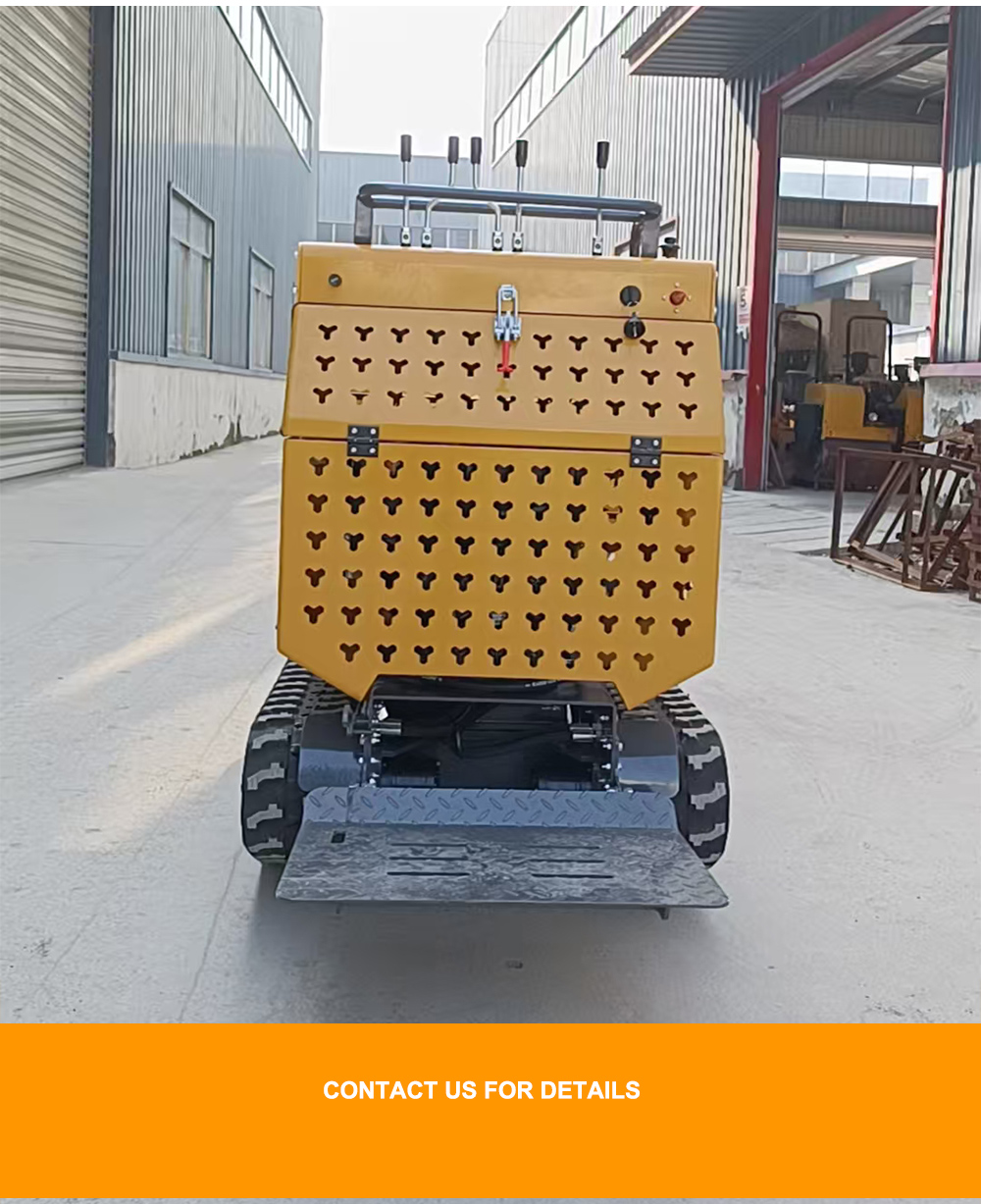

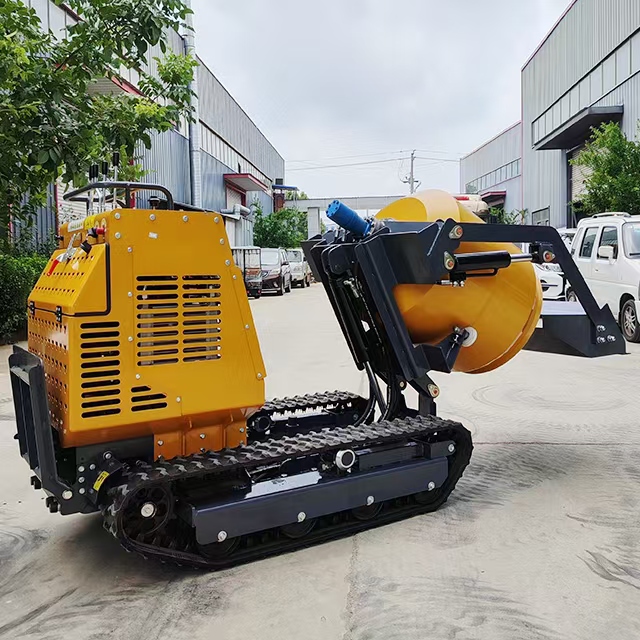

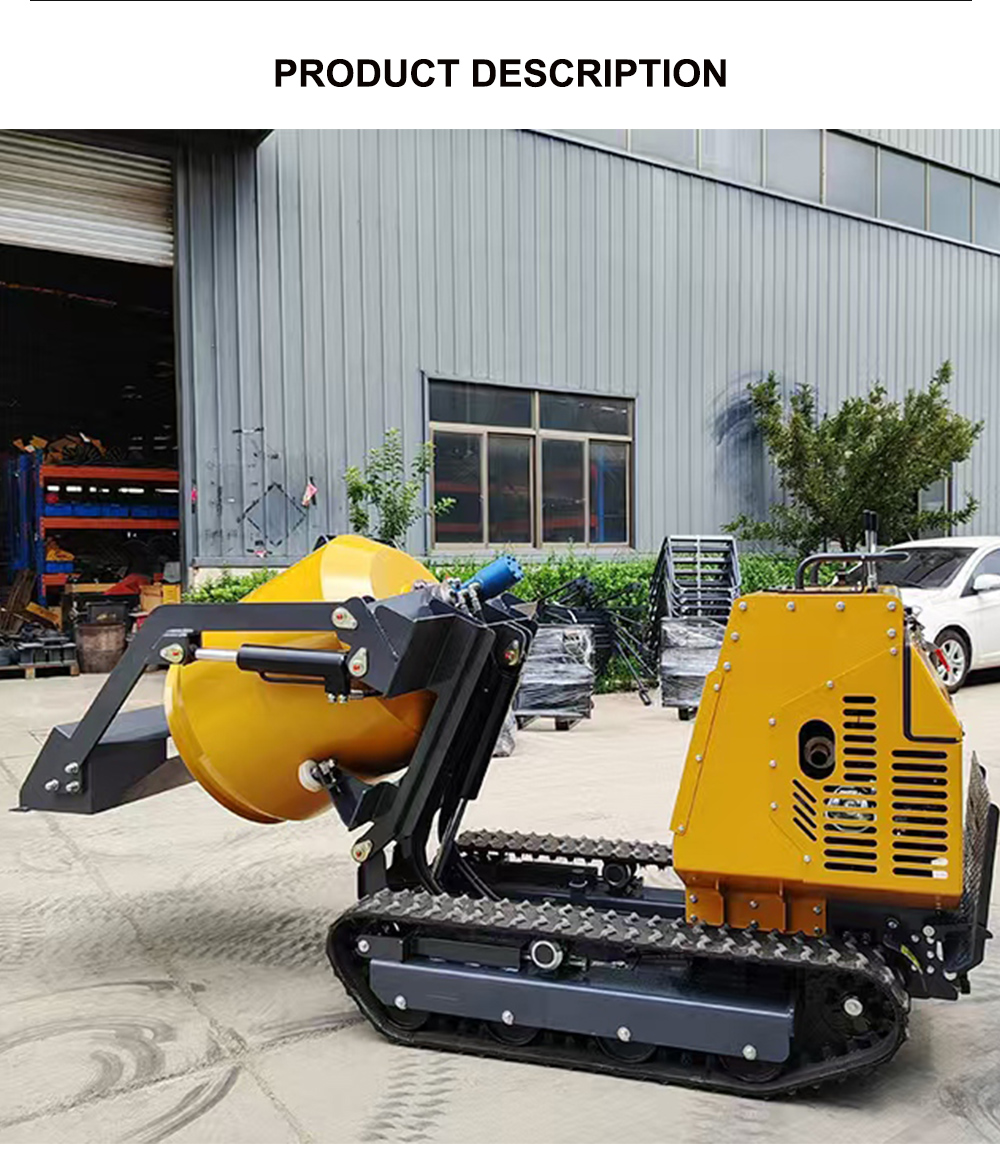

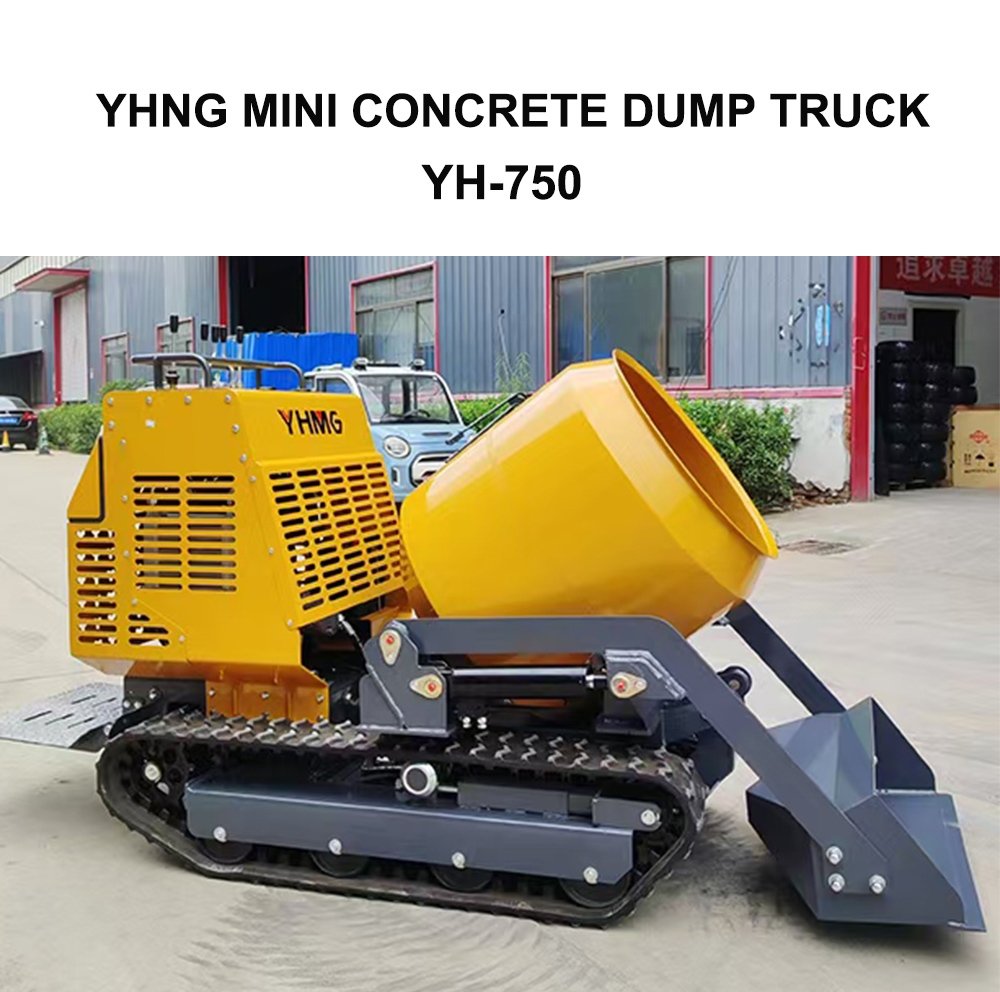

Brand new YHNG Mini Concrete Dump Truck
$3600.00
Freight
Sea freight, Land freight
Quantity
Product details
| Engine data | |
| Engine data | Briggs&Stratton Pioneer |
| Engine Type | Single cylinder, OHV, 4-stroke, air cooling |
| Displacement:(ML) | 420CC |
| Rated Power:(kw/rpm) | 13.5HP/3600rpm |
| Fuel Type | 92 # Gasoline |
| Fuel Tank capacity(L) | 6.5 |
| Dimensional data | |
| Total Weight:(KG) | 750 |
| Machin size (MM) | 1800*900*1500 |
| Bucket size with foot pedal(MM) | 2500*900*1500 |
| Chassis width (MM) | 850 |
| Mixing tank data | |
| Diameter of irrigation port(MM) | 460 |
| Mixing tank length(MM) | 800 |
| Mixing tank diameter(MM) | 720 |
| Tank capacity | 300 |
| Dumping method(dm³) | Hydraulic Tipper |
| Mixing tank dumping angle( °) | 100 |
| Track data | |
| Track width(MM) | 180 |
| Track grounding length(MM) | 1000 |
| Chassis ground clearance:(MM) | 110 |
| Bucket data | |
| Bucket length(MM) | 820 |
| Leakage port length(MM) | 500 |
| Leakage port width(MM) | 80 |
| Walk | |
| Walking Speed(km/h) | 3 |
| Minimum Turning radius(MM) | 1300 |
| Track gauge(MM) | 670 |
| Climbing a billty(°) | 25 |
