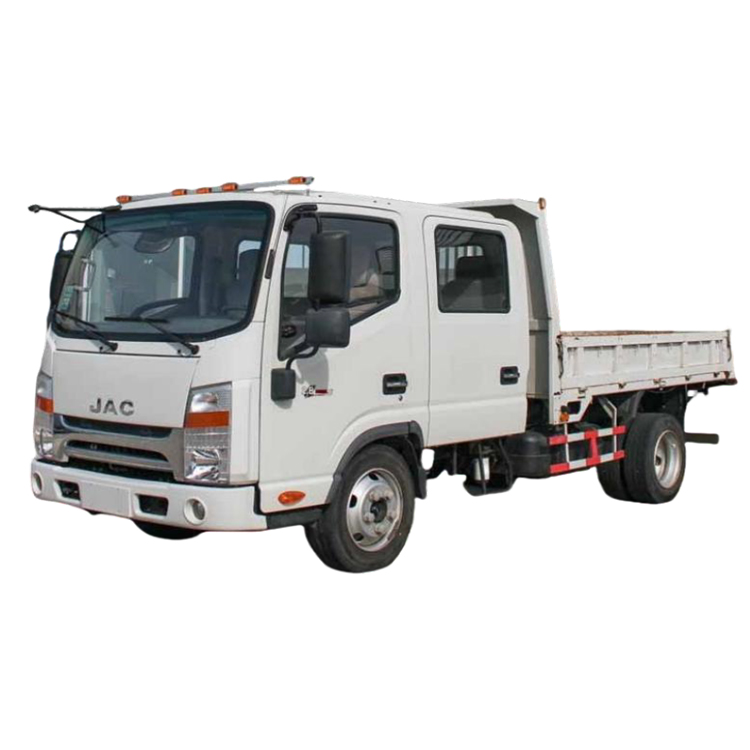

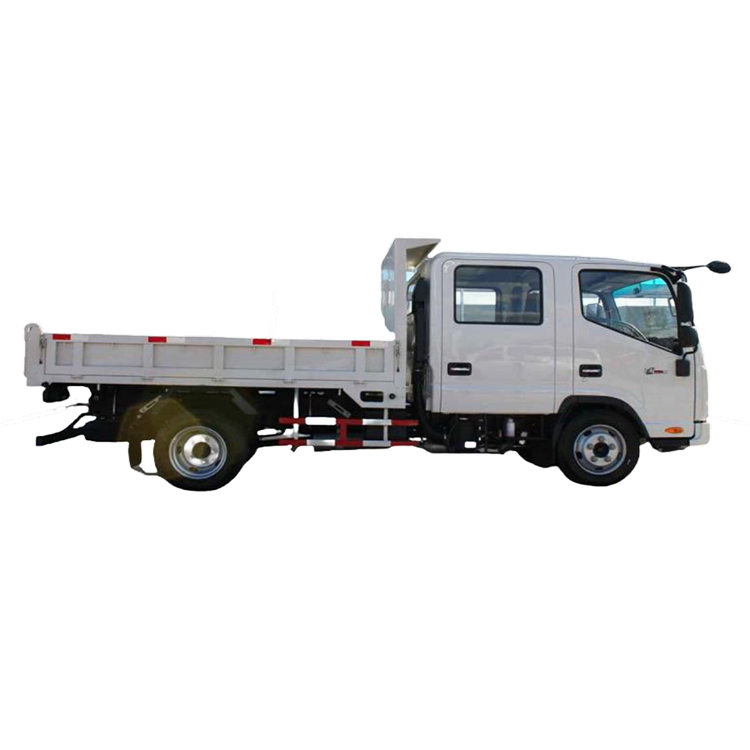

New JAC double-row cab 4x2 dump truck
Original price:$0.00
$16200.00
Freight
Sea freight, Land freight
Quantity
Product details

Core features

1. Cabin:

A double-row cabin - can accommodate 5-6 people (3 in front   2-3 in back), convenient for construction workers, management personnel, or guards to travel with the vehicle.

2. Drive type:

4x2 - i.e. two axles rear-wheel drive. This is the most common drive type for dump trucks, suitable for driving on relatively well-paved or hardened roads, with good economy and flexibility.

3. Function:

Dump truck - the cargo box is equipped with a hydraulic lifting mechanism, which can automatically tilt the goods backward (or sideways/three-way), greatly the unloading efficiency.


Wheelbase3360mm
Drive Axle Type4x2
Whole size5500*1900*2300mm
Payload3500KG
Tire6.50R16LT
CabinDouble cabin(6 seats)
LHD/RHDLeft hand drive
Brake SystemAir Brake
Power SteeringYes
Air ConditioningYes
Electric doors and windowsYes
ModelHFC4DA1-1
Cylinder Number4
FuelDiesel
Displacement2.77 L
Max. Output Power68 KW
Max. Horsepower92 HP
Max. Torque290 Nm
OperationMannual
Forward Gear5
Reverse Gear1
Reference Dimension2600*1900*600mm(reference )
MaterialIron
