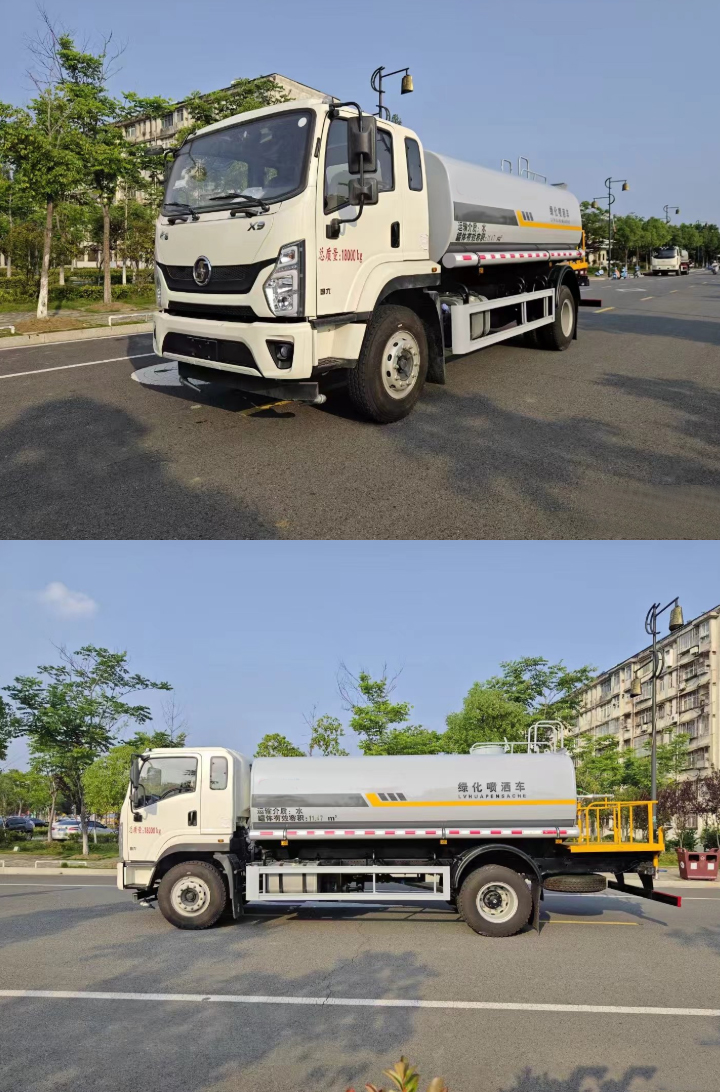

Chassis Configuration

● Engine: YCS4200-68 ● Transmission: 8JS7C (with power take-off) ● Front/Rear Axle: 3.2T/10t (5.286) ● Frame (mm): 232/64 double layer ● Wheelbase (mm): 4500 ● Cab: X9 Row Half/2120 ● Leaf Springs: 9/10 8 ● Fuel Tank: 200L Aluminum ● Tires: 10.00 R20/18PR. X9 Row Half/2120 (with air conditioning/electric windows/fixed passenger seat/headlight adjustment/central locking/MP3 player/economic airbag for driver's seat/Tianxing Zhiya BD version vehicle terminal); ● Yuchai YCS04200-68 engine, 8JS75C (with power take-off), wheelbase 4500, front axle 3.2T, rear axle 10t, fuel tank 200L aluminum, tires 1.00R20/18PR.

Body Configuration

Material: The tank is made of Q235 steel, with a 3mm partition, 4mm carbon steel tank body, and 5mm head thickness.

Key Fittings:Large-diameter straight-through ball valve, aluminum alloy tee, 76mm thickened main pipeline.

Cast aluminum pipe fittings: Aluminum alloy elbow tee, aluminum alloy flange tee, aluminum alloy pump cross,

aluminum alloy pump inlet straight-through (die-cast molding, weldless, leak-proof; standardized design for good

interchangeability, easy maintenance and part replacement).

Aluminum alloy material: Lighter, aesthetically pleasing, and practical, enhancing product quality.

Other Accessories:

Aluminum alloy rear sprinkler, stainless steel valve, high-pressure water gun.

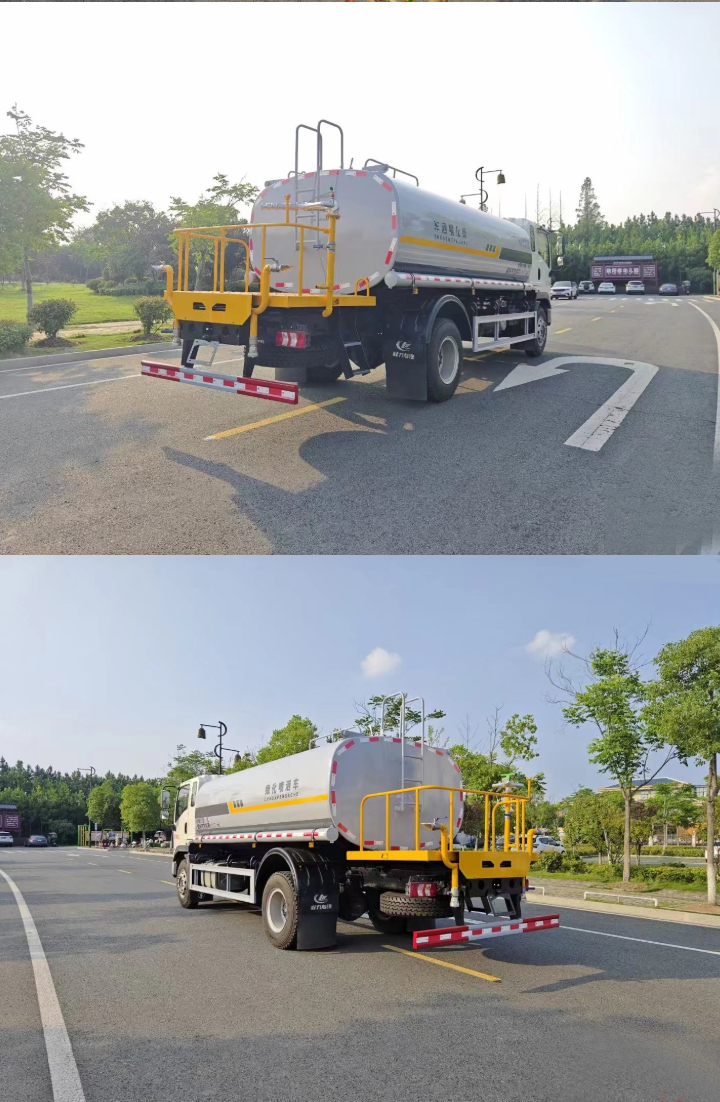

2mm perforated plate platform: Better anti-slip performance, no water accumulation; optimized structure,

perforated design for higher strength, lightweight, and improved product grade.

Special Performance of Sprinkler:

Front flush (spray), side spray, and rear working platform with a high-pressure water gun (adjustable spray patterns:

 straight jet, heavy rain, moderate rain, drizzle; continuous adjustment, maximum range up to 30 meters).

Equipped with a high-power special spray pump, fire hydrant, self-flow valve, self-priming function, and filter screen.

Parameters:

Suction lift ≥ 6 meters

Sprinkling width ≥ 16 meters

Range ≥ 30 meters

Fog range ≥ 15 meters
