Chassis configuration

Adopted Dongfeng Forrayka chassis model EQ1125SJ8CDC, National VI Nei 150 horsepower engine, Wanliyang 6-speed manual transmission, 800MM wheelbase, original factory cold and warm air conditioning, braking, power steering, central control lock, electric window, ABS, other configurations are standard configurations of Dongfeng original factory.

Body configuration

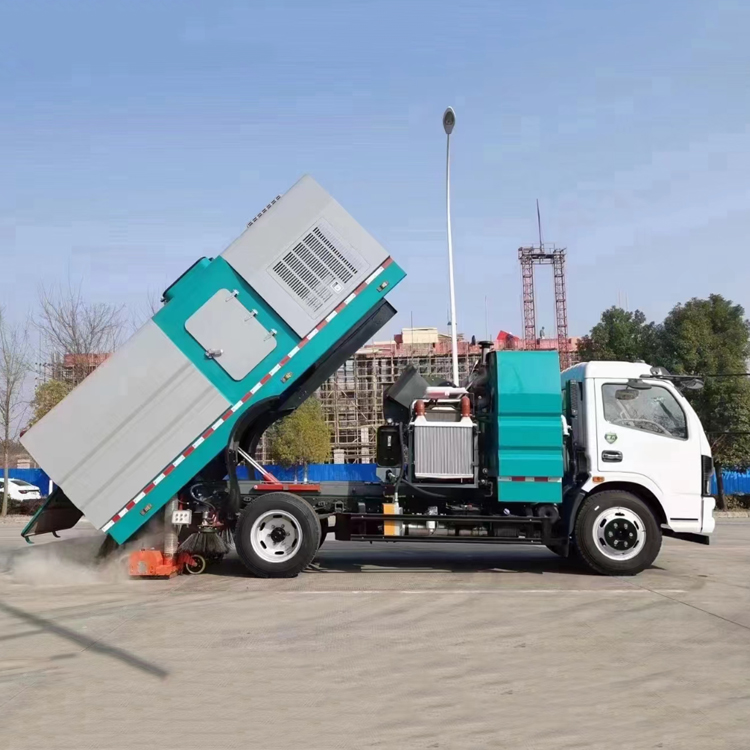

Jiangling 8 horsepower auxiliary engine; Megafox control switch, control box; Haipurayis valve group, oil cylinder; stepless speed automatic clutch; Morning wind maintenance-free centrifugal fan; precision garbage box filtration system; imported pulse valve; manual pump emergency system tail light emitting diode arrow light. The rear-mounted wide-width suction mouth adopted, and the suction disc is equipped with a roller brush, and the suction disc is equipped with left and right brushes, vertical filter cylinder structure, and it is convenient clean the dust. Manual pump emergency system, when the auxiliary engine stops, the garbage box can also be lifted. Water tank capacity: about 2 cubic, garbage box capacity: 5.5 cubic, vehicle color: announcement color, other configurations are strictly made according to the standard.

Note

The vehicle is equipped with chassis certificate of conformity whole vehicle certificate of conformity, vehicle registration invoice, environmental protection list, certificate of conformity.
