●Model ZZ3317V3867E1

●HW76 new front face cab

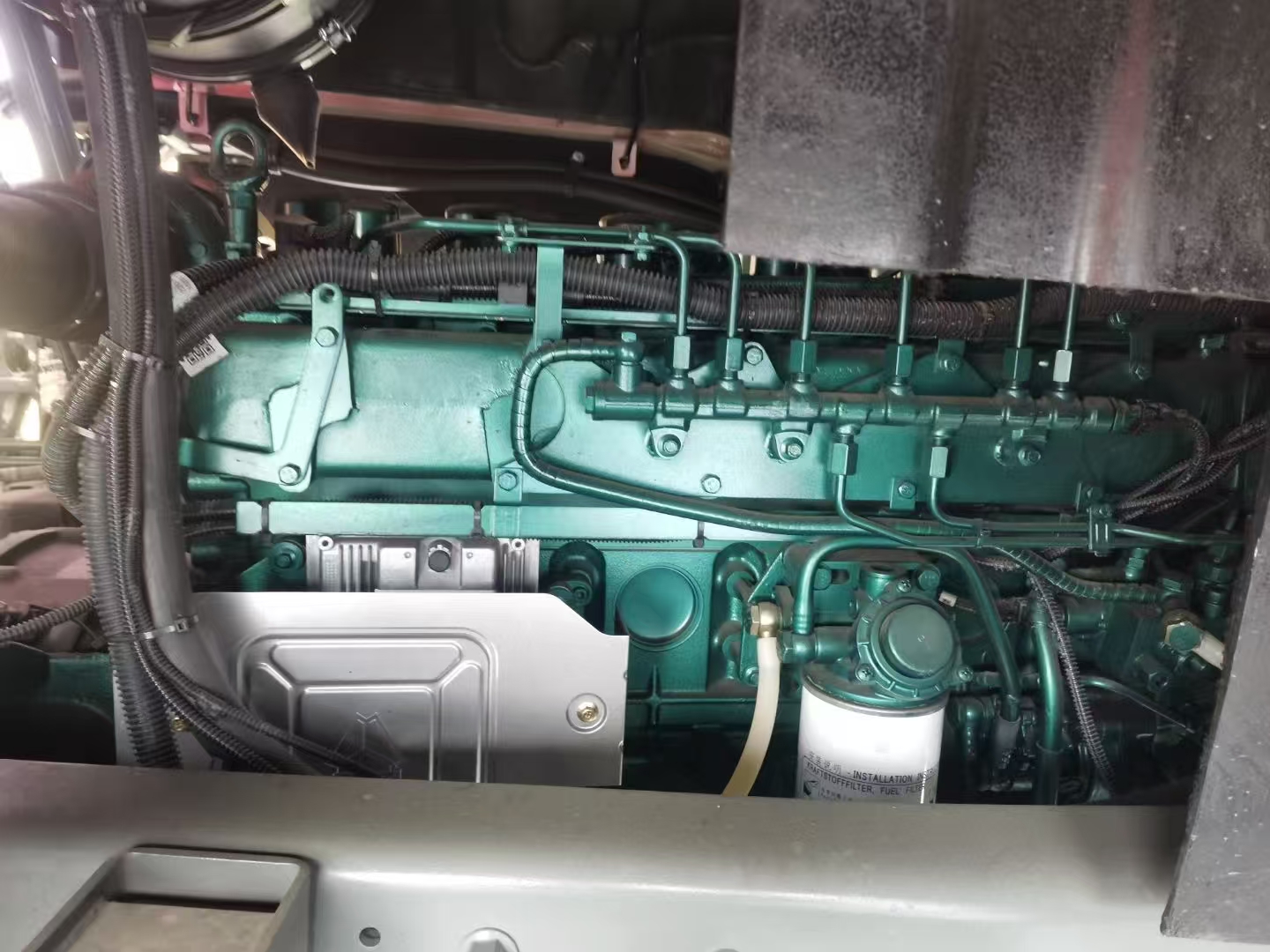

●D1.38-50 engine

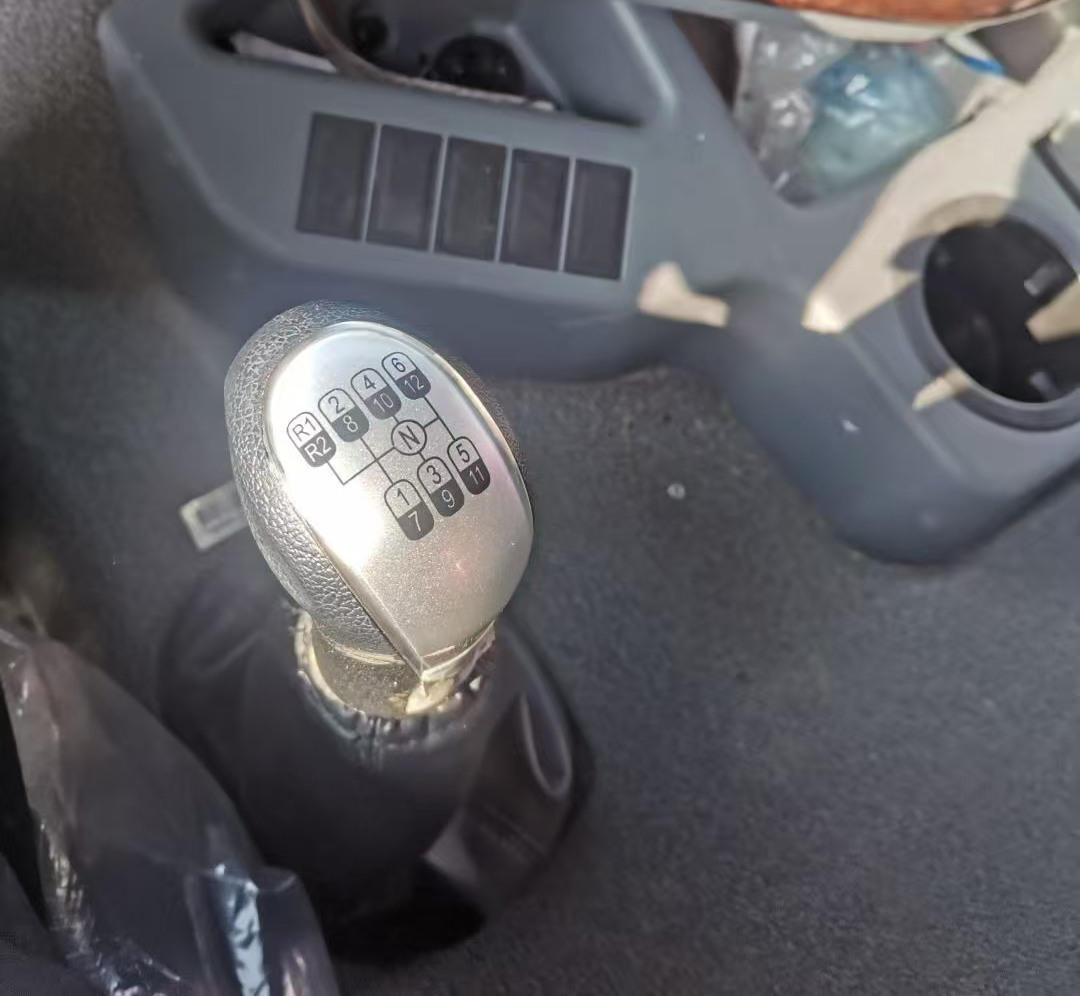

●HW19712 transmission   HW50 direct drive power take-off

●VGD95 self-adjusting front axle (drum)

●MCP16ZG self-adjusting arm double rear axle (drum)

●Double-deck frame (8+8 /300)

●Front and rear reinforced multi-leaf springs. (11/11/12)

●Bosch steering gear

●Reinforced 12.00R20

●ABS (4S/4M)

●Engineering version intake system (oil filter)

●Standard version exhaust system

●position bumper (full metal)

●600L fuel tank

1. Basic configuration:

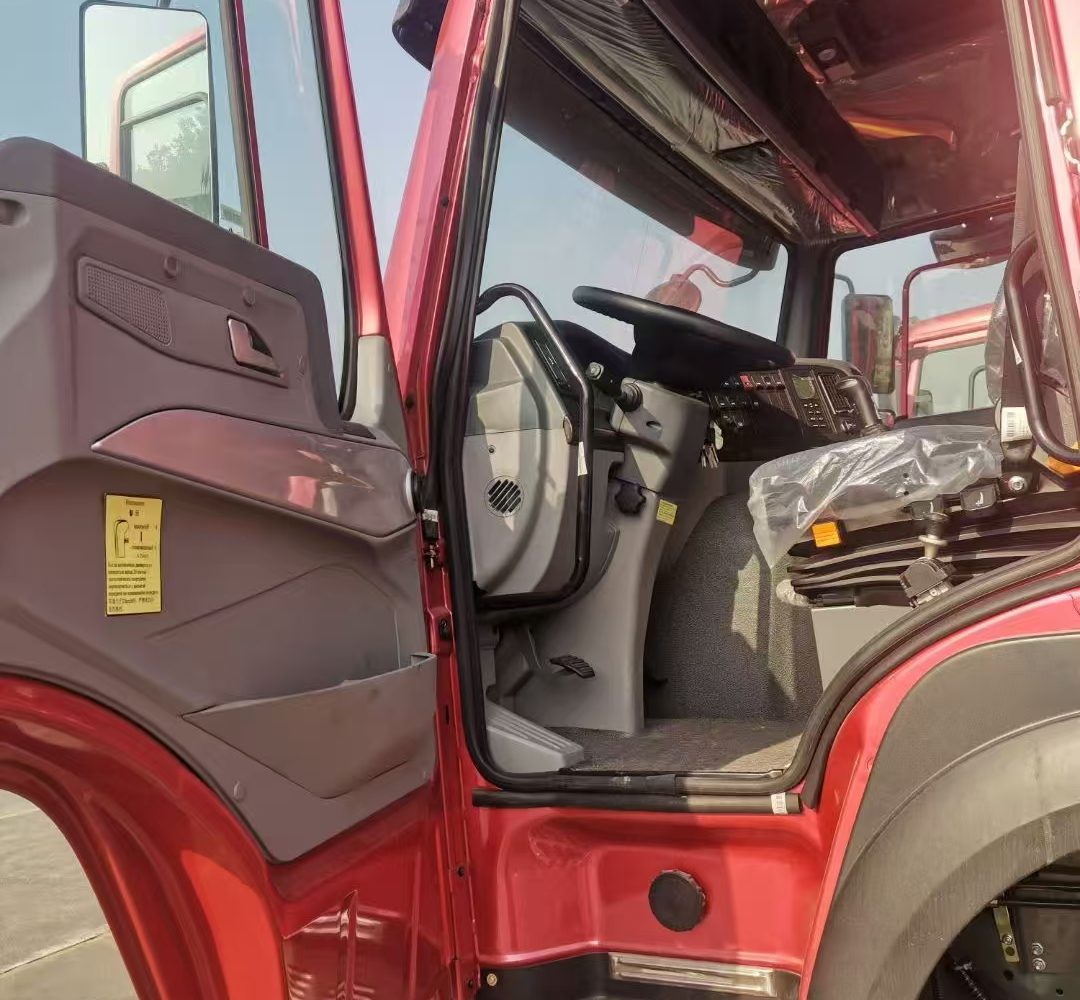

TFT instrument, ordinary steering wheel, mechanical shock-absorbing main seat, co-driver seat, electric glass lifter, USB interface, automatic air conditioning, surround curtain track, cruise control, MP3, manual economy rearview mirror, manual cab lifting front and rear spring cab suspension, inter-wheel   inter-axle differential lock, Parker fuel coarse filter (fuel), ordinary headlights, front and rear stabilizer bars reversing buzzer, 2Kg fire extinguisher, lining to the bottom, rear tow hook, intercooler protection grille.

2. Regional solid configuration:

under-vehicle start-stop device, Russian language instrument, cold zone package (intake preheating, urea heating (Euro IV and above), 10AH battery), front lower protection, emergency call system, E-mark certification universal optional (Russia), metal pipelines, engine guard, self-adjusting arm   alarm.

3. Optional configuration:

optional reversing buzzer, under-vehicle start-stop switch, rear tow hook, cold and warm air conditioning, fire extingu, left rear expansion water tank, intercooler protection device.

Body size 7600*2300*1500+ 500 color with chassis, bottom 8 side 6, 850 high-strength steel, domestic oil cylinder 4-180, bottom plate heating, installation of LED searchlights, front, rear headlights and sidelights added protection cover (front headlights protection cover can be opened), conventional side protection, installation of 2 pads wedge block, upper frame and lower frame on the side plate added a rope hook, each side plate added 2 tighteners, the bottom plate rear part added 2 tighteners installation of anti-splashing mudguard, not added anti-splashing mud skin, rear bridge rear end added mud skin (black), the front column reflects the heavy truck and English identification, the upper frame reflects the customer company logo and Russian name (provided by the customer), spare tire front (spare tire located at the rear end of the-driver), swing arm spare tire rack. Side light conduit. Carrier medium and working condition: coal; soft base road surface. EU certification reflective signs and lights Chinese and Russian warning signs, Russian
