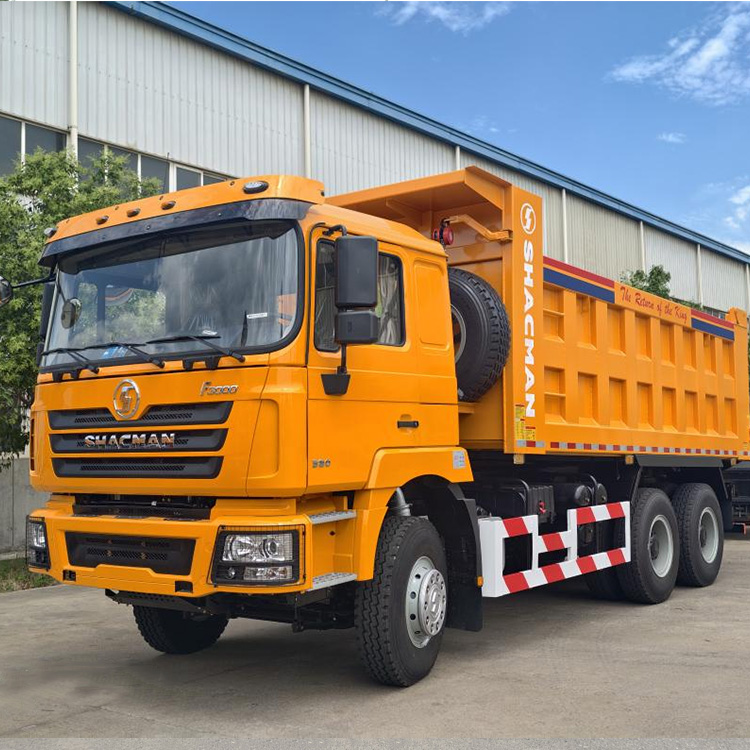

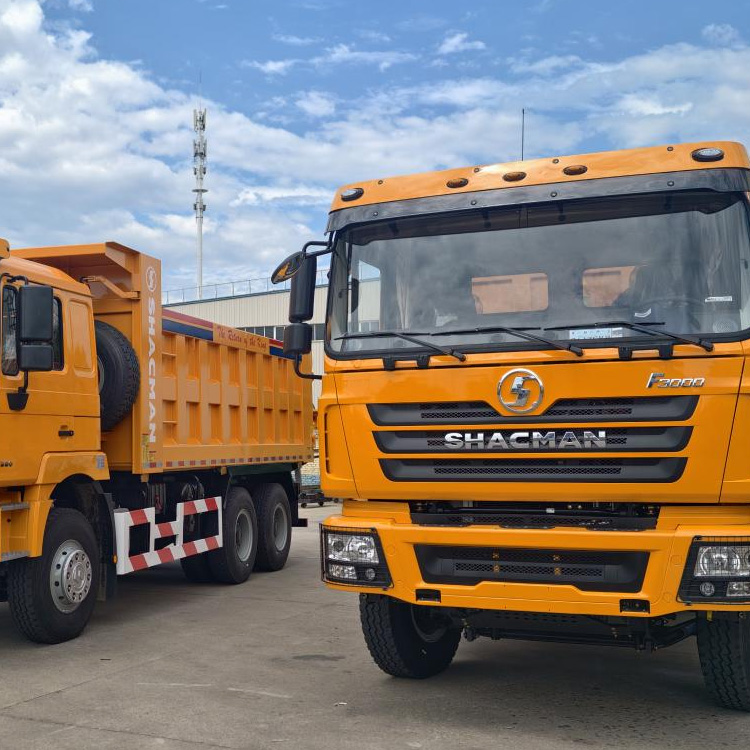

SHACMAN Delong F3000 Dump Truck with Good Quality for Export
$15428.50
Sales volume 0
Add to Favorites
Export SHACMAN F3000 6X4 dump truck
$0.00
Freight
Sea - Land Transportation
Quantity
Product details
| MODEL | SX3255DT404 |
Driver position | left Hand |
| Driving type | 6*4 |
| Wheelbase | 3975+1400 |
| Max. Speed(km/h) | 60km/h |
Engine Brand | WEICHAI |
| Engine Model | WP10.380E22 |
| Engine Emission Standard | EURO2 |
| Engine Rated output power（PS） | 380HP |
| Engine Displacement | 9.726L |
| Transmission Brand | FAST |
| Transmission Model | 12JSD200T-B-Iron shell+QH50 |
Front axle Brand | HANDE |
Front axle Model | MAN9.5T |
| Rear axle Brand | HANDE |
| Rear axle Model | 16T MAN Double-stage casting bridge-5.92 |
| Clutch | ￠430 diaphragm clutch |
| Steering | ZF technology |
| Frame | 850×300(8+7) |
| Suspension | Front and rear multi-leaf springs Four main discs + four riders |
| oil tank | 400L Aluminium alloy fuel tank |
| Wheels and tires | 12.00R20（10+1） |
| Brakes | Running brake:Dual circuit compressed air brake Parking brake:Air discharging with spring control |
| Cabin | F3000 medium length flat roof cab without roof deflector dump truck/electric automatic constant temperature air conditioning/domestic clutch/desert air filter/ordinary steering wheel/165Ah maintenance free battery/manual flip/two-stage boarding pedal/metal bumper with light protection net/left front traction pin/electric window shaking machine/hydraulic main seat/ordinary rearview mirror/tail light protection grille/water tank protection grille/front stabilizer bar/reverse buzzer/rear enclosure panel/sound insulation panel/four point hydraulic suspension/sunshade decorative light/SHACMAN logo/full English logo/parking wedge/2KG fire extinguisher |
| Upload information | Cylinder brand and cylinder bore: Domestic 180 cylinder/bottom plate thickness (mm): 10/side plate thickness (mm): 8/cargo box size (mm): 5800*2300*1500 |
