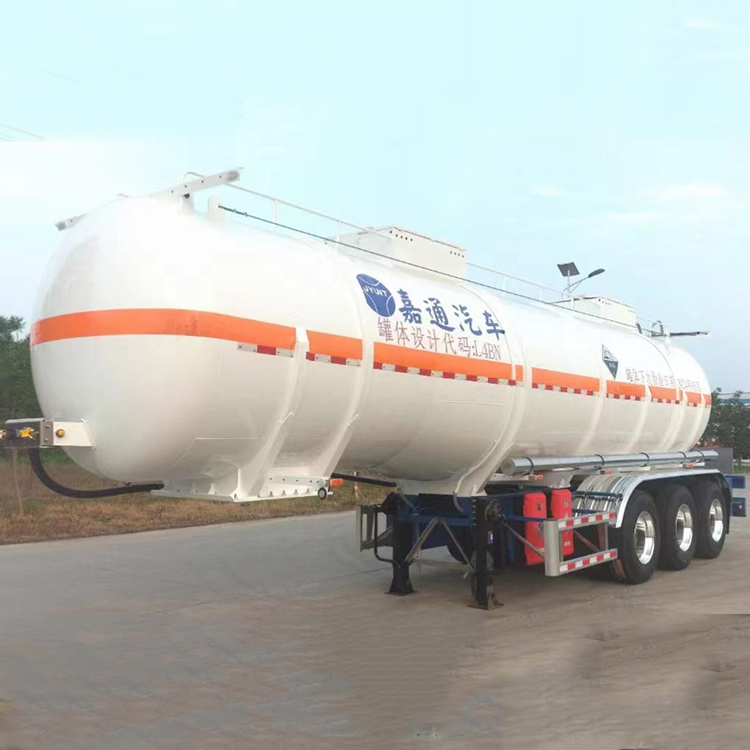

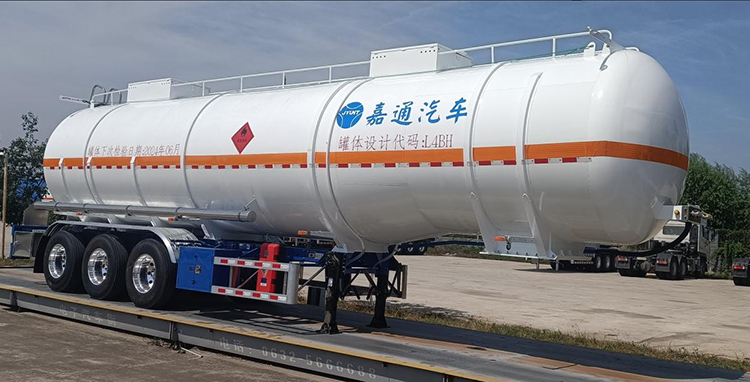

Export Jiayuntong Brand JTC9401GFW38 Corrosive Goods Tank Transport Semi-trailer
$0.00
Freight
Sea - Land Transportation
Quantity
Product details
| Design Specifications | |
| Design standards | GB185641-2019 |
| Transportation medium | Category 8 |
| Loading and unloading form | Bottom loading, tail unloading |
| Vehicle size (mm) | 11420×2550,2500×3980(mm) |
Verified load quality | 33000 |
| Can body | |
| Tank volume | 39 m³ (total volume) |
| Dividing warehouse | Single warehouse |
| Bucket | 304 stainless steel 3.5mm |
| Header | 304 stainless steel 4.5mm |
| Waveproof board | 304 stainless steel 4.5mm prefabricated + expansion type |
| Pipelines and accessories | |
| Manholes and numbers | 2 sets of stainless steel nine-claw large cover small cover quick opening human hole |
| Gas phase valve | 1 vacuum valve, 1 safety valve + 1 blasting disc |
| Emergency shutdown valve | 4-inch stainless steel pneumatically installed at the rear bottom |
| Unloading valve | The emergency shutoff valve is connected to the T-shaped pipe and a stainless steel 1 4-inch stainless steel ball valve on the right side of the rear |
| Anti-overflow device | 1 set of stainless steel |
| Oil vapor recovery | 1 set of stainless steel + API valve |
| appendix | |
| Tank roof guardrail | Factory standard, anti-slip walkway platform, lift guardrail |
| Hose storage box | One on the left and right sides of the stainless steel |
| Climbing ladder outside the tank | External ladder (rear) |
| Unloading box | PVC |
| Toolbox | Aluminum alloy |
| Spare tire rack | 1 |
| fender | Factory equipped with aluminum alloy integral type and stamping type |
| Side guardrail | Factory equipped with aluminum alloy prefabricated and stamped |
| Rear bumper | Factory equipped with high-strength steel |
| Fireproof device | 8 kg barrel fire extinguisher, 2 pieces in total |
| Anti-static device | 1 electrostatic mopping zone, 1 electrostatic wiring tray |
| Walking mechanism | |
| Axle | Factory logo |
| suspension | Air suspension, disc brake |
| tire | Chaoyang Golden Crown 12: 00R22.5, 12 pieces |
| Steel ring | Aluminum alloy 22.5*9.00 |
| Lifting legs | Jost linkage |
| Traction pin | 50# prefabricated |
| Circuit system | |
| Lighting | 24V system, 7-core socket, LED lamp |
| Circuit system | Explosion-proof junction box Turn signals, brake lights, and reverse lights are installed on the left and right of the rear bumper. Running lights and fog lights |
| electric wire | All wire connectors are waterproof connectors; all wires are sealed with corrugated pipes |
