Product details

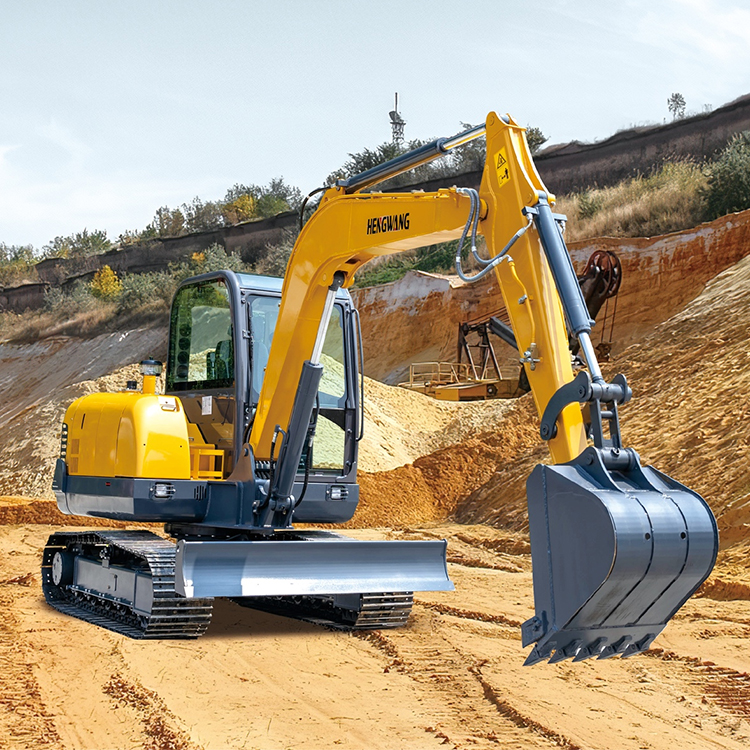

HW60 is a 6-ton small excavator newly developed by Hengwang Group according to market demand. It adopts a Yanmar engine
with a power of 36.2 kW and an output torque of 193 N.m. It is equipped with well-known brand hydraulic components, making the
machine powerful. This machine has the characteristics of high cost performance, low consumption and energy saving. It meets the
various needs of customers in small earthwork construction sites such as municipal construction, house construction, and farmland
water conservancy. It is equipped with a 7-inch large screen, and vehicle condition information can be checked at any time. The full-
speed control gives customers a smooth operation experience.
| Operating Weight | 6000kg |
| Bucket Capacity | 0.09-0.2m³ |
| Engine Brand | Yanmar |
| Engine model | 4TNV94L / 4TBV94 |
| Emission standards | National IV / National Ⅱ |
| EngineType | nline 4 cylinders,Mechanically controlled direct injection. |
| Engine Air filter | Donaldson direct current air filter |
| Engine Cooling system | Water cooling |
| Engine Air Intake | Wastegate Turbo(WGT) |
| Engine Charged air cooling | / |
| Engine Cooling fan drive | Direct |
| Engine Displacement | 3.05L |
| Engine Rated speed | 2100rpm |
| Engine output - net(SAE J1349 / ISO 9249) | 34.8 (47.34 hp / 139ps) kw |
| Engine output - gross(SAE J1995 / ISO 14396) | 36.2 (49.25 hp / 152ps) kw |
| Engine Maximum torque | 210 @1,200 rpm N.m |
| Engine Bore × Stroke | 94× 110mm |
| Swing system Description | The planetary gear reducer is driven by a high-torque axial piston motor and is equipped with a mechanical braking function. The braking delay time is 4.5 ± 1.5 seconds. |
| Slewing motor brand | Yantai aidi |
| Travel motor brand | Yantai aidi |
| Swing speed | 10.1 rpm |
| Swing torque | 15647 N.m |
Hydraulic pump brand | Yantai aidi |
| Hydraulicsystem Distributor brand | Paike |
| Hydraulicsystem Type | one variable displacement piston pumps |
| Hydraulicsystem Maximum flow | 151.2 L/min |
| Engine oil | Max 12 L |
| Final drive (each) | 1 L |
| Swing drive | / |
| Cooling system | 11 L |
| Hydraulic reservoir | 90 L |
| Hydraulic system total | 112 L |
| Max. travel speed | 4.1/2.5 km/h |
| Gradeability | 35° /70% |
| Max. drawbar pull | 47.5kN |
| Boom | 3000mm |
| Arm | 1600mm |
| L*W*H） | 5850*1880*2575 |
| Shipping Length | 6010 |
| Shipping Height – Top of Boom | 2170mm |
| Track Gaug | 1600 |
