Export Small Excavator HW30
$0.00
Sales volume 388

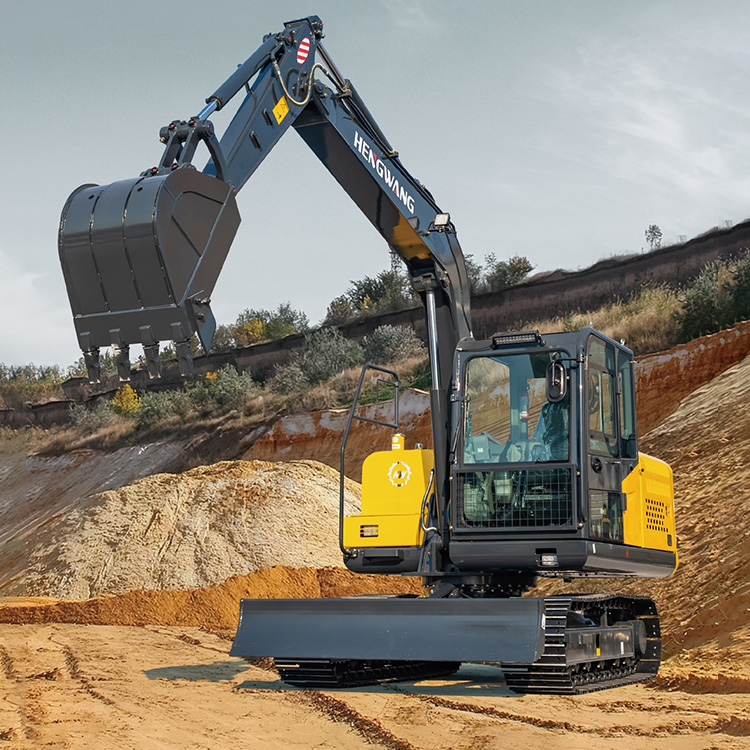

The HW80 is an 8 - ton - class mini - excavator newly developed by Hengwang Group according to market demands. It is equipped
with a Yanmar engine with a power of 54.3kW and is installed with hydraulic components from well - known brands, making the
machine powerful. This machine features high cost - effectiveness, low consumption and energy - saving, and can meet various
needs of customers at small - scale earthwork construction sites such as municipal construction, house building, and farmland water
conservancy.
| Operating Weight | 8T |
| Brand | Yanmar |
| Model | 4TNV98T |
| Power | 54.3KW |
| Emission standard | National Ⅲ |
| Hydraulic pump brand | Inline |
| Distributor brand | Inline |
| Rotary motor brand | Inline |
| Travel motor brand | Yantai aidi |
| Bucket capacity | 0.32 m³ |
| L*W*H | 6400*2300*2515mm |
| Max. Digging Depth | 4038mm |
| maximum digging height | 7365mm |
| Max. Dumping height | 5065mm |
| Maximum digging radius | 6180mm |
| Min. front swing radius | 1795mm |
| Fuel tank capacity | 130L |
| Hydraulic oil tank capacity | 90L |
| Bucket Digging Force | 52KN |
| Working pressure | 24.5Mpa |
| Boom length | 3710mm |
| Arm digging force | 1650mm |
| Travel speed | 5.1km/h |
