Export Small Excavator HW30
$0.00
Sales volume 388

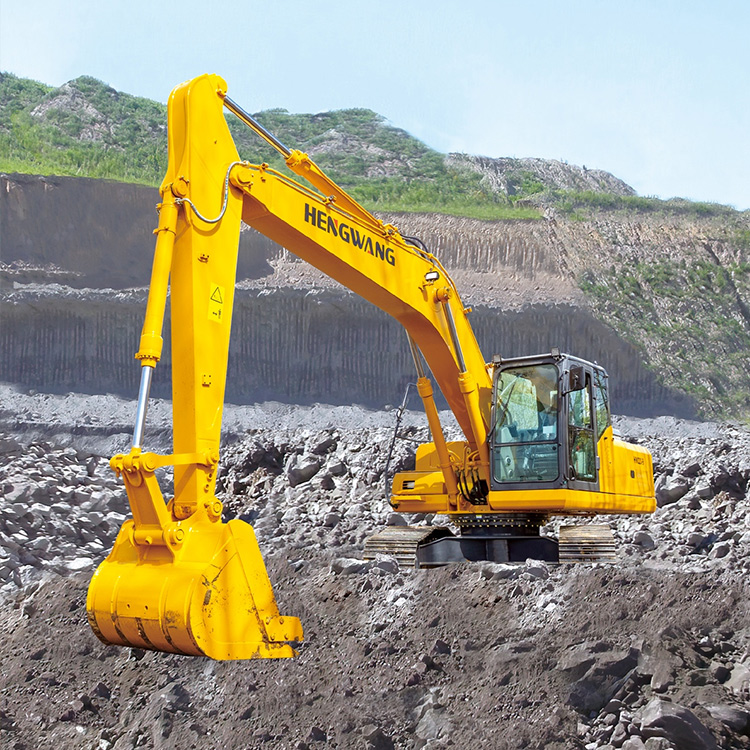

Shandong Hengwang HW220-9 crawler excavator is suitable for various engineering environments, including municipal
engineering, earthwork engineering, landscaping, road maintenance, concrete crushing, river dredging, forestry logging,
engineering drilling, concrete leveling, loading and unloading goods, etc. The machine can quickly replace various types of
working devices, and is equipped with various attachments such as digging bucket, hammer, Wood grabber, auger, vibrating
rammer, electric suction cup, etc. to meet customers' various engineering needs. It is easy to replace and operate.
| Operating Weight | 21600kg |
| Bucket Capacity | 1.05m³ |
| Engine Brand | Cummins |
| Engine model | 6BTAA5.9-C178- Ⅱ |
| Emission standards | Tier 2 / Stage ll; Euro 5 |
| Rated speed | 2000 |
| Engine output - gross(SAE J1995 / ISO 14396) | 708N.m@1500rpm |
| Fuel tank | 330L |
| Engine oil | 22L |
| Max. travel speed | 3.1/5.1 3.8/6Km/h |
| Gradeability | 35° /70% |
| Max. drawbar pull | 182KN |
| Total transport length | 9625mm |
| Grounding length | 4915mm |
| Total height (boom top) | 3075mm |
| Total width | 2980mm |
| Total height (cab) | 3050mm |
| Maximum digging height | 10950mm |
| Max. Dumping Height | 7190mm |
| Max. Digging Depth | 6490mm |
| Maximum Vertical Digging Depth | 5915mm |
