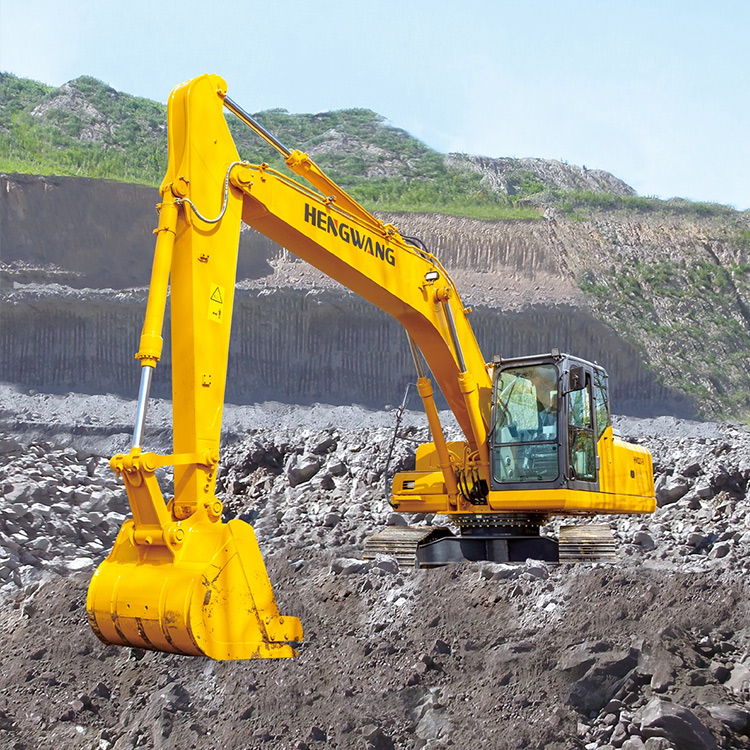

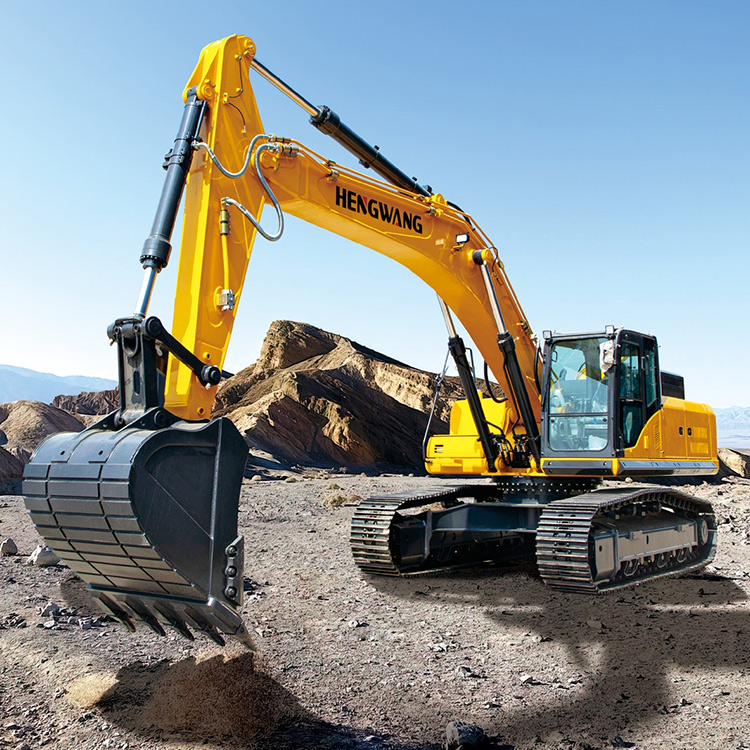

Export HW380-9A Crawler Excavator Large Excavator
Original price:$0.00
$0.00
Freight
海运 陆运
Quantity
Product details

Shandong Hengwang HW380-9 crawler excavator is suitable for various engineering environments, including municipal

engineering, earthwork engineering, landscaping, road maintenance, concrete crushing, river dredging, forestry logging,

engineering drilling, concrete leveling, loading and unloading goods, etc. The machine can quickly replace various types of

working devices, and is equipped with various attachments such as digging bucket, hammer, Wood grabber, auger, vibrating

rammer, electric suction cup, etc. to meet customers' various engineering needs. It is easy to replace and operate.


Operating Weight37800kg
Bucket Capacity1.9m³
Engine BrandIsuzu
Engine modelGB3-6HK1X-212-2000
Emission standardsTier 3 / Stage lll
Rated speed2000rpm
Engine output - gross(SAE J1995 / ISO 14396)212Kw(284hp/288ps)
Maximum torque1080N.m@1500rpm
Fuel tank600L
Max. travel speed3.1/5.2Km/h
Gradeability35° /70%
Max. drawbar pull360KN
Total length transportation11320mm
Total width3340mm
Total height (boom top)3610mm
Upper width3200mm
Standard track shoe width600mm
Track length5030mm
Maximum digging height10210mm
Max. Dumping Height7280mm
Max. Digging Depth6780mm
Maximum digging distance10540mm
