Export Small Excavator HW30
$0.00
Sales volume 388

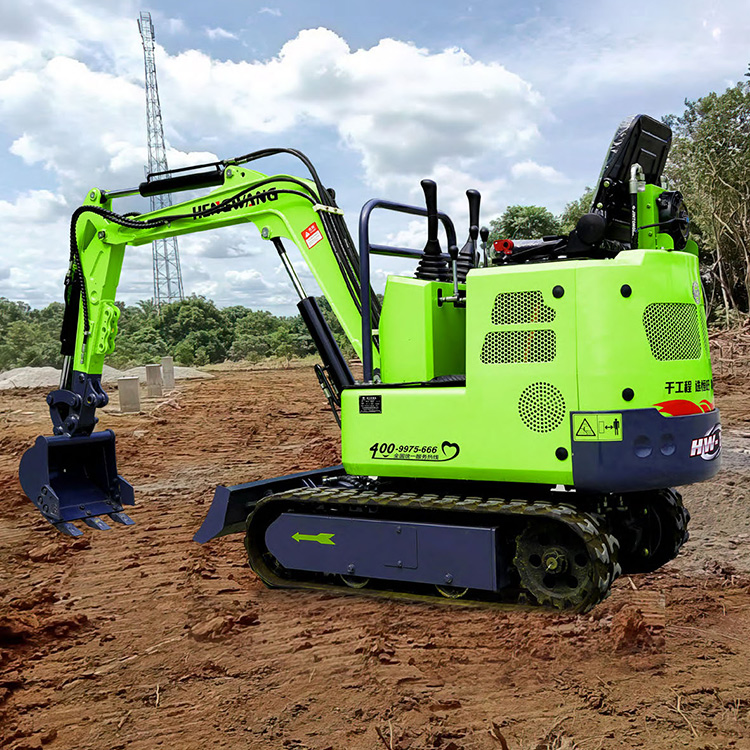

HW10-3E electric mini excavator is a 1-ton class rechargeable micro-excavator independently developed and produced by our company in response to market demand. It is powered by electricity, significantly reducing operating costs. The machine retains the original excavator appearance, and its compact design allows it to be used in various narrow spaces such as indoors, orchards, and greenhouses. It is suitable for various operating environments, including agricultural planting, landscaping, orchard ditching and fertilizing, small earthwork projects, road surface repair, basement and indoor construction, concrete crushing, cable laying, water pipeline laying, and gardening cultivation.
| Total Weight | 1000KG |
| Motor Power | 6.5KW |
| Motor type | Permanent magnet synchronous machine |
| Battery material | Ternary Lithium |
| Battery capacity | 150AH |
| Rated working voltage | 72V |
| Charging voltage | 220V |
| Main pump displacement | 8mL/r |
| Hydraulic oil tank volume | 18L |
| Work pressure | 16MPa |
| Awning weight | 37KG |
| LxWxH | 2770x930x2080mm |
| Wheelbase | 915mm |
| Platform ground clearance | 370mm |
| Track width | 180mm |
| Track height | 320mm |
| Bulldozer blade maximum lifting height | 140mm |
| Bulldozing Blade Maximum Clearing Depth | 270mm |
| Maximum Digging Height | 2620mm |
| Maximum dump height | 1900mm |
| Maximum Digging Depth | 1675mm |
| Maximum Digging Radius | 2960mm |
| Stick Digging Force | 4L |
| Bucket Digging Force | 6L |
| Maximum Digging Force | 7.9L |
| Bucket capacity | 0.025m³ |
| Walking speed | 2.0KM/h |
| Gradeability | 30° |
| Minimum turning radius of tail | 800mm |
