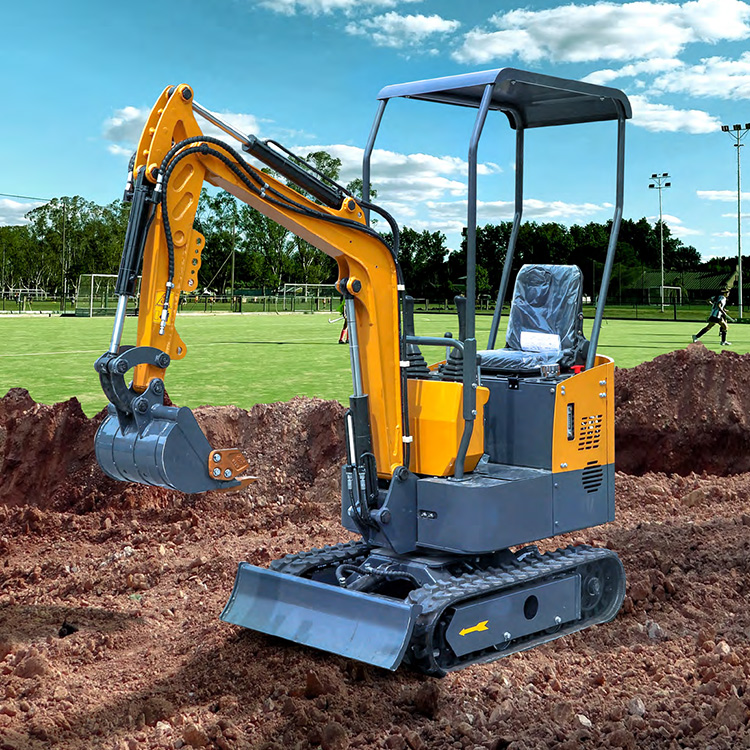

Export Small Excavator HW10-4
Original price:$0.00
$0.00
Freight
海运 陆运
Quantity
Product details


HW10-4 revolves around the new design concept of faster speed, higher efficiency, more energy-saving, environmentally friendly, and more user-friendly. It has undergone a comprehensive upgrade in terms of configuration and features more considerate details. With the cooperation of various attachments, it can achieve multiple functions, making it suitable for various operation scenarios, especially in narrow spaces where it can demonstrate its capabilities. It is particularly suitable for tasks such as digging ditches in orchards, laying pipelines, and municipal construction in small-scale scenarios.


Total Weight1000KG
Awning weight20KG
EngineChangchai/Koop
Emission StandardsNaitonal II/Naitonal II
Engine model192FA
Engine power8.2/7.6/7KW
Fuel tank volume9.6L
Main pump displacement6.5mL/r
Hydraulic oil tank volume18L
Work pressure16MPa
Total width920mm
Total height/including awning1470/2160mm
Minimum ground clearance120mm
Platform ground clearance370mm
Track width180mm
Track height320mm
Shipping length (minimum length)2100mm
Bulldozer blade maximum lifting height125mm
Bulldozing Blade Maximum Clearing Depth210mm
Maximum Digging Height2600mm
Maximum dump height1760mm
Maximum Digging Depth1630mm
Maximum Digging Radius2960mm
Stick Digging Force4KN
Bucket Digging Force6KN
Maximum Digging Force7KN
Bucket capacity0.025m³
Walking speed2.0km/h
