Product details

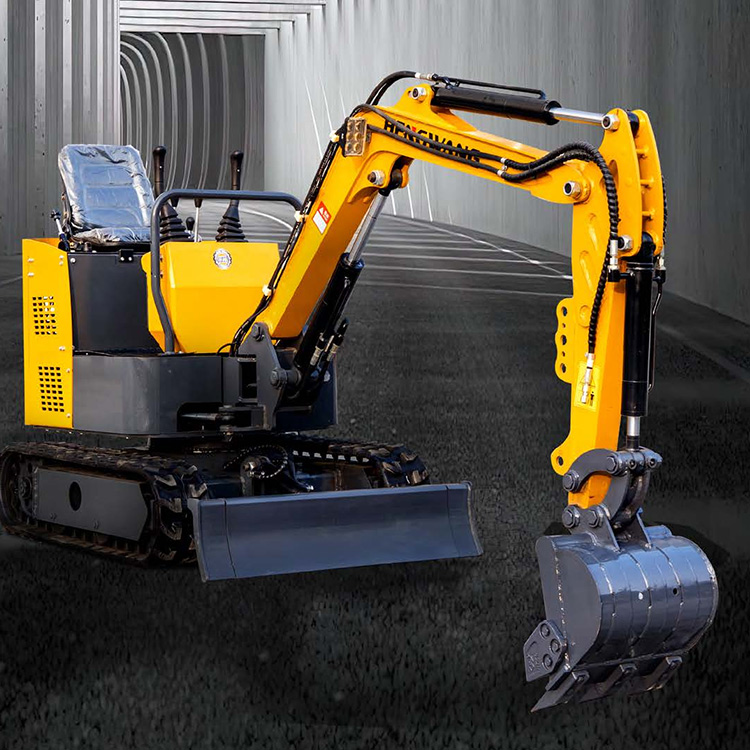

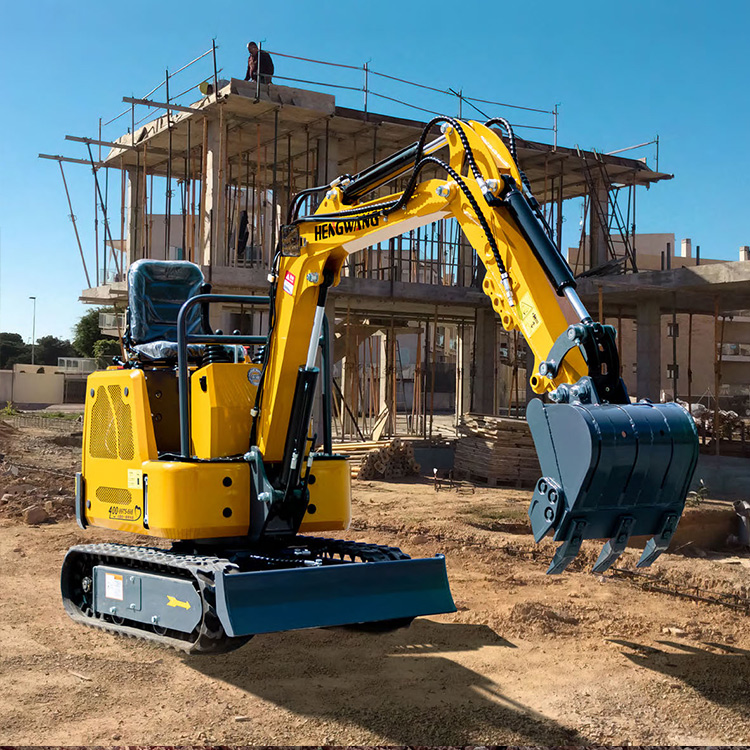

HW-13 is a small excavator produced by our company. Its compact design allows it to be used in various narrow spaces such as elevators, indoors, orchards, and greenhouses. It is suitable for agricultural planting, landscaping, orchard ditching and fertilization, small-scale earthwork projects, basement and indoor construction, concrete crushing, laying of water pipelines, and gardening cultivation in various operating environments.
| Awning weight | 20KG |
| Engine brand | Changcahi/ KOOP |
| Emission Standards | Naitonal II/ Naitonal II |
| Engine model | 192FA |
| Engine power | 8.2/7.6/7KW |
| Fuel tank capacity | 5.5KW |
| Main pump displacement | 6.5ml/r |
| Hydraulic oil tank capacity | 18L |
| Work pressure | 16mpa |
| Total length | 2910 |
| Total width | MIN820/MAX1020 |
| Total height | 2130mm |
| Wheel base | 940mm |
| Platform ground clearance | 370mm |
| Track width | 180mm |
| Track height | 2280mm |
| Length | 2240mm |
| Fuselage length | 1650mm |
| Bulldozer blade maximum lifting height | 125mm |
| Bulldozing Blade Maximum Clearing Depth | 210mm |
| Maximum Digging Height | 2600mm |
| Maximum dump height | 1760mm |
| Maximum Digging Depth | 1630mm |
| Maximum Digging Radius | 3100mm |
| Stick Digging Force | 4KN |
| Bucket Digging Force | 6KN |
| Maximum Digging Force | 7KN |
| Bucket capacity | 0.025m³ |
| Walking speed | 2.5km/h |
| Gradeability | 30° |
| Minimum turning radius of tail | 820mm |
| Maximum effective working length of L2 working device | 2675mm |
| Maximum effective working length of L3 boom stick | 2215mm |
| Boom side swing angle | 117(Left and right each 58.5) |
