Core Advantages:
● Powerful Traction and Efficient Operation:
A 320-horsepower engine, paired with an efficient transmission heavy-duty chassis, can handle the most demanding bulldozing tasks.
● Outstanding Reliability and Durability:
Key components (such as the engine, transmission, chassis) are sourced from renowned brands or manufactured by SANY using mature technology, designed to be robust and adaptable to harsh working conditions.
● High Fuel Economy:
Opt matching of the Cummins engine with SANY's transmission system effectively reduces operating costs.

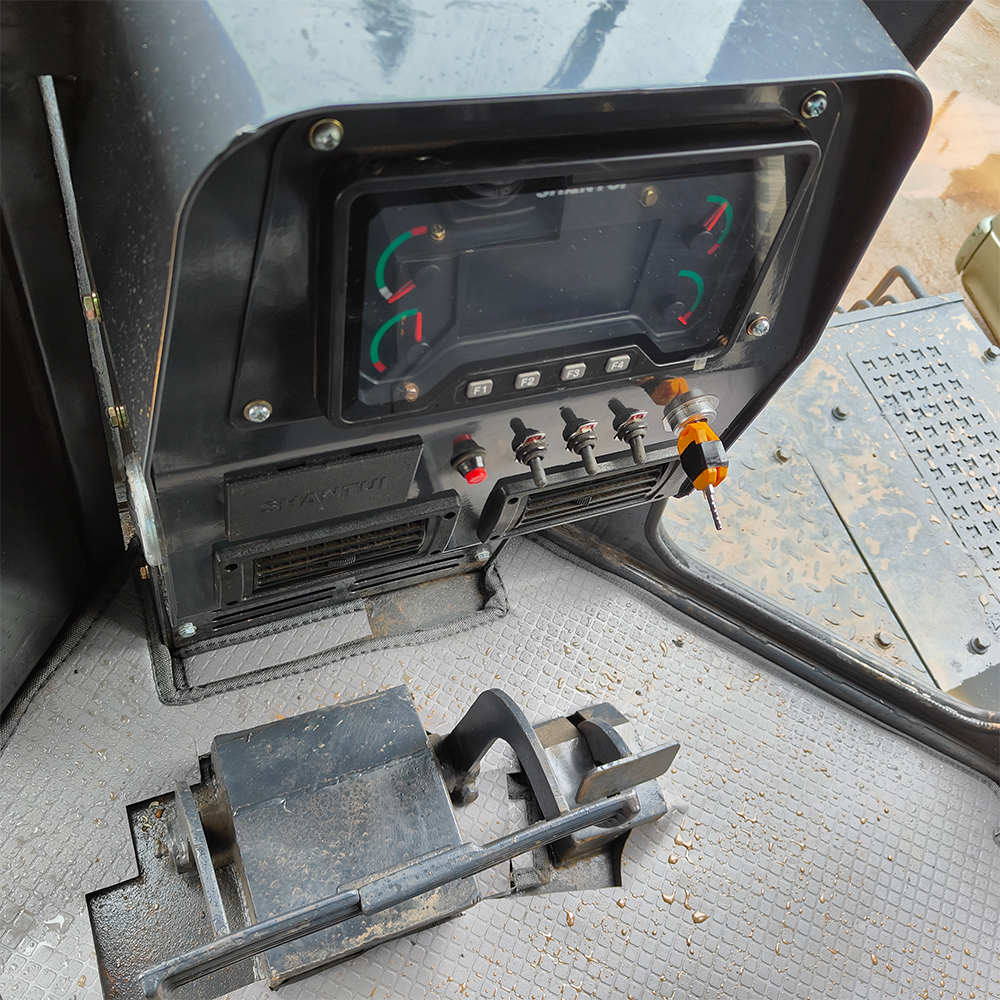

● Excellent Operator Comfort:
A humanized designed cab significantly enhances operator comfort and.
● Comprehensive After-sales Service and Accessory Support:
Relying on SANY's extensive domestic service network, equipment uptime and maintenance convenience are guaranteed
● Cost-effective:
Among imported brand bulldozers of the same horsepower level, it offers a significant price advantage.
| Overall weight: | 40200kg(standard) |
| Engine model: | WP12/QSNT-C345 |
| Rated power/rated speed: | 257/2000kW/rpm |
| Dimensions: | 8650x4130x3760mm |
| Fuel tank capacity: | 640L |
| Blade type: | Straight bucket, angle bucket, half U bucket |
| Blading depth: | 560/630/560mm |
| Forward speed: | F1:0-3.6km/h,F2:0-6.6km/h,F30-11.5km/h |
| Reverse: | R1:0-4.4km/h,R2:0-7.8km/h,R3:-13.5km/h |
| Track plate width: | 560/610/660/710mm |
| Ground contact length: | 3150mm |
| Ripper type: | Single tooth, teeth |
| Ground pressure: | 97.7kPa |
| Ripping depth: | Single 1250mm, three 842mm |
| Track center distance: | 2140mm |
