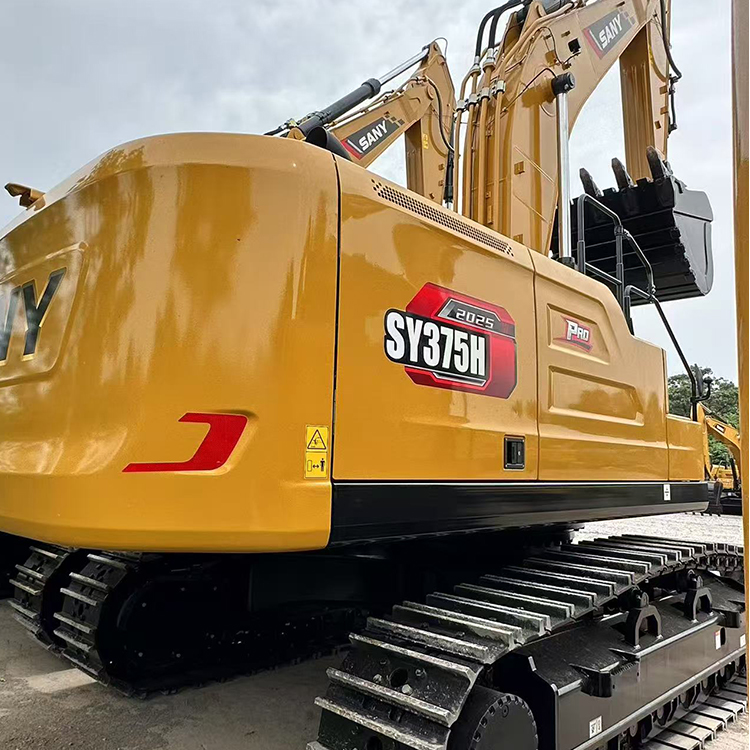

Export brand-new SANY 375 excavator
$128000.00
Sales volume 492
Add to Favorites

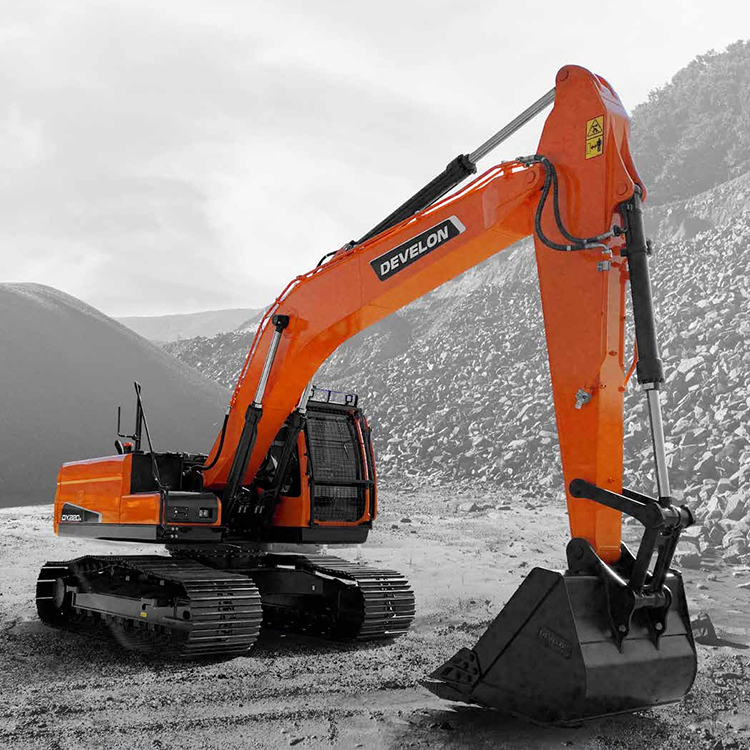

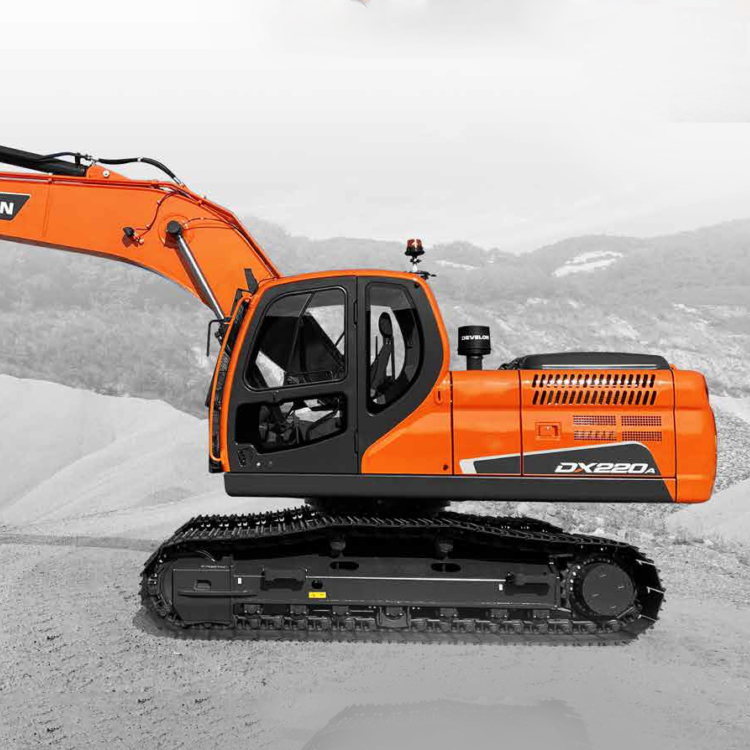

Export Brand New Excavator DEVELON DX220(LC)A-2M
$78500.00
Freight
Sea freight, Land freight
保障
安全担保交易
Quantity
Product details
| ENGINE | |
| Model | DEVELON DB58TIS |
| Type | 2 valves per cylinder, vertical injectors, water cooled, turbo charged with air to air intercooler. The emission levels are well below the values required for TIERⅡ. |
| Number of cylinders | 6 |
| Rated horse power | 113 kW (154 PS) @ 1,800 rpm (SAE J1995, Gross) 109 kW (148 PS) @ 1,800 rpm (SAE J1349, Net) |
| Max torque | 66 kgf.m @ 1,400 rpm |
| Piston displacement | 5,785 cc |
| Bore & stroke | Ø 102 x 118 mm |
| Starting motor | 24 V x 4.5 kW |
| Batteries | 24 V(12 V x 2 /100 AH) |
| Air cleaner | Double element |
| HYDRAULIC SYSTEM | |
| Main pumps | Swash plate, Axial piston Max. Flow : 2 x 207 l/min Displacement : 115 x 2 cc/rev |
| Pilot pump | Gear pump - max fow : 27 l/min Pilot pump : 15 cc/rev |
| Main relief Pressure | Maximum system pressure : 350 kgf/cm³ Main system pressure : 350 kgf/cm³ Travel system pressure : 350 kgf/cm³ Swing system pressure : 270 kgf/cm³ |
