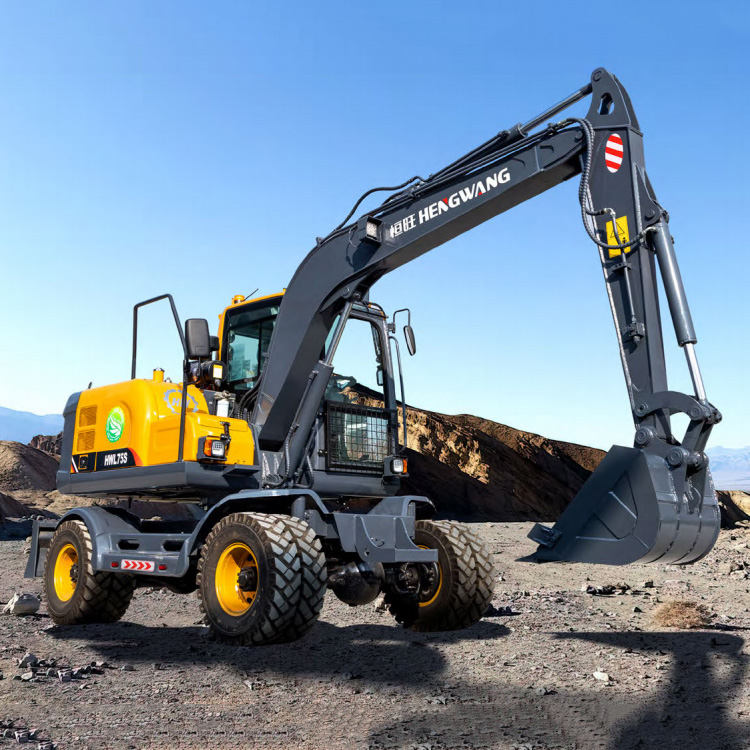

Export Wheel Excavator HWL-75S
Original price:$0.00
$0.00
Freight
Ocean shipping, Land transportation
Quantity
Product details


HW-75S revolves around the new design concept of faster speed, higher efficiency, more energy saving, more environmental protection, and more humanization. It can be used in various scenarios, especially in small spaces, and is especially suitable for small scenarios such as orchard trenching, pipeline laying, and municipal construction.


Total Weight 7200 KG
Engine model YC4FA65-T300
Engine power 48 KW
Fuel tank capacit175 L
Main pump displacement 72+14 ml/r
Hydraulic oil tank capacity 148 L
Work pressure 24 MPa
Total length 5898 mm
Total width 2140 mm
Total height 2270 mm
Wheelbase 2400 mm
Tire model 825-16
Tire quantit8
Wheelbase 1670 mm
Minimum ground clearance 227 mm
Bulldozer blade maximum lifting height 376 mm
Maximum support height of bulldozing blade 31 mm
Maximum Digging Height 6650 mm
Maximum dump height 4837 mm
Maximum Digging Depth 3670 mm
Maximum Digging Radius 6578 mm

Maximum Vertical Digging Depth

3219 mm
Stick Digging Force 21 KN
Bucket Digging Force 36 KN
Bucket capacity 0.3 m³
Walking speed 11/27 km/h
Minimum turning radius 6800 mm
Gradeability 35 °
Swing speed 10.5 r/min
Minimum turning radius of tail 1650mm
