Export Wheel Excavator HWL-90
Original price:$0.00
$0.00
Freight
Ocean shipping, Land transportation
Quantity
Product details

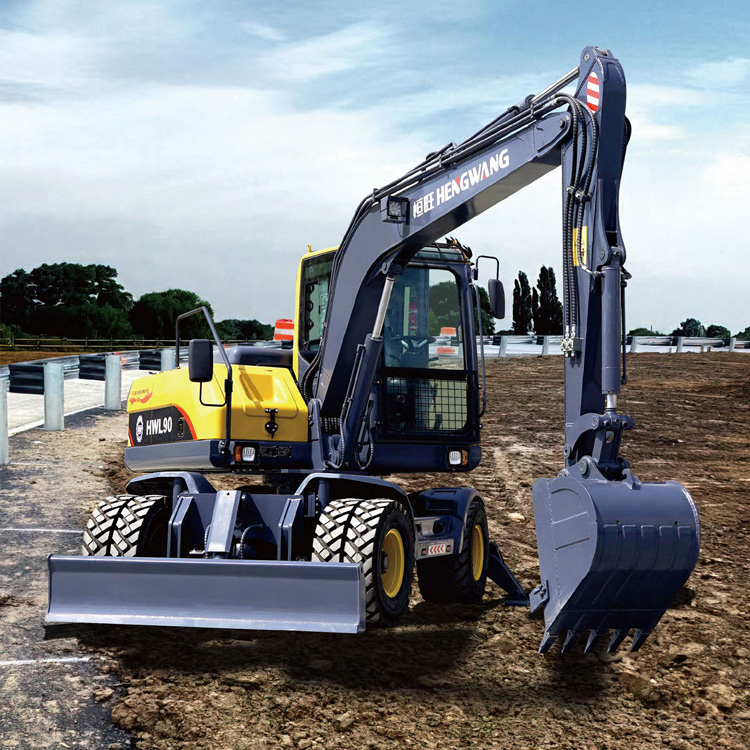

HWL-90 wheeled excavator, professional wood grabber, extended arm, hydraulic double outriggers, widely used in municipal engineering, earthwork engineering, landscaping, road repair, cement concrete crushing, river dredging, forest farm grasping Wood, engineering drilling, concrete leveling, loading and unloading and other engineering operating environments, the wheeled excavator travels fast, with a maximum speed of 35 km/h, and can quickly replace various operating tools. Buckets, breaking hammers, rotary grabs, augers, vibrating rammers, electric suction cups and other attachments can meet various engineering needs of customers, and are easy to replace and operate.


Total Weight9000KG
Engine model4D32/4FA65
Engine power55/48KW
Pump capacity27+27/72+12 ml/r
Hydraulic oil tank capacity110L
Work pressure24MPa
Total length6410mm
Total width2120mm
Total height2840mm
Wheelbase2400mm
Tire model825-16
Tire quantity8个
Wheelbase1670mm
Minimum ground clearance220mm
Maximum lift height of bulldozer blade320mm
Maximum support height of bulldozing blade30mm
Maximum Digging Height7150mm
Maximum dump height5170mm
Maximum Digging Depth3655mm
Maximum Digging Radius6845mm
Stick Digging Force21KN
Bucket Digging Force36KN
Bucket capacity0.3m³
Walking speed35KM/H
Minimum turning radius6800mm
Gradeability35°
Swing speed10r/min
Minimum turning radius of tail1980mm
