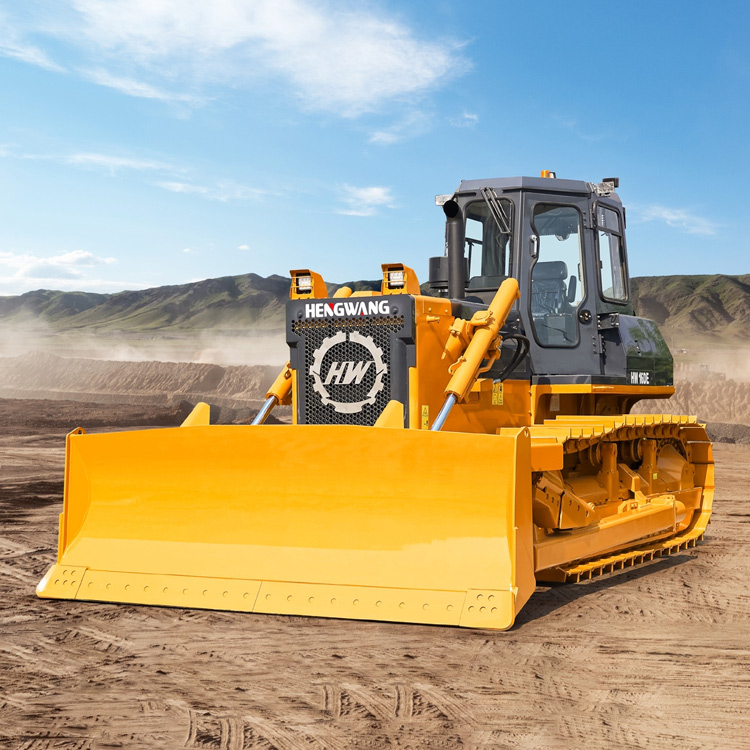

Export Bulldozer HW34D
$0.00
Sales volume 388
The HW16DE bulldozers have reinforced chassis, arms, and blades, which can handle the most challenging large obstacles, such aslarge rocks and boulders, The blade is thicker, and the arm coating is improved to enhance strength and durability.lt is particularlysuitable for heavy mining applications. lt is one of the best-seling products of Hengwang in Africa, where large-scale mining isprevalent.
| Working weight | 17500kg |
| Minimum turning radius | 4513mm |
| Grounding length | 2635mm |
| Ground specific pressure | 0.058Kpa |
| Engine model | Weichai WD10G178E25 |
| Rated power/Rated speed | 131/1850 kw/rpm |
| Overall Dimensions | 5345*3388*3032 mm |
| Track center distance | 1880mm |
| Track shoe width | 510/560mm |
| Number of track shoes (one side/piece) | 39 |
| Chain track pitch | 203.2mm |
| Number of rollers (one side) | 2 |
| Number of supporting wheels (one side) | 7 |
| Ground clearance | 400mm |
| Forward speed | F1:0-3.29km/h F2:0-5.82km/h F3:0-9.63km/h |
| Reverse speed | R1:0-4.28km/h R2:0-7.59km/h R3:0-12.53km/h |
| Fuel tank | 320L |
| Working hydraulic tank | 108L |
