Export Bulldozer HW34D
$0.00
Sales volume 388

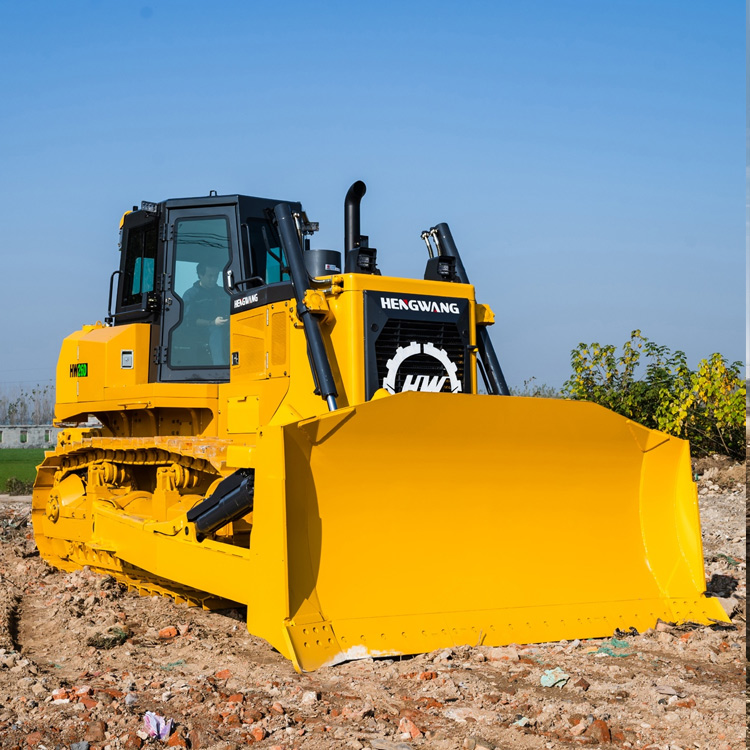

The HW26DE buldozers have reinforced chassis, arms, and blades, which can handle the most challenging large obstacles, such aslarge rocks and boulders. The blade is thicker, and the arm coating is improved to enhance strength and durability. t is particularlysuitable for heavy mining applications. t is one of the best-seling products of Hengwang in Africa, where large-scale mining isprevalent.
| working weight | 24200kg |
| Minimum turning radius | 3300mm |
| Ground specific pressure | 0.062Mpa |
| Engine model | Weichai WP12G280E304 |
| Rated power/Rated speed | 206/1900kw/rpm |
| Overall Dimensions | 5920*3642*3460mm |
| Track center distance | 2000mm |
| Track center distance | 560/610/660mm |
| Number of track shoes (one side/piece) | 41 |
| Chain track pitch | 216mm |
| Number of rollers (one side) | 2 |
| Number of supporting wheels (one side) | 7 |
| Ground clearance | 405mm |
| Fuel tank | 450L |
| Working hydraulic tank | 110L |
| Shovel type | Semi-U-shaped bucket |
| Blade capacity | 7m³ |
| Blade quality | 3239kg |
| Blade width | 3642mm |
| Blade height | 1580mm |
| Lifting height | 1210mm |
| Cutting depth | 540mm |
| Scarifier type | single tooth/three tooth |
| Scarifier quality | 2560/2624kg |
| Maximum Loosening Depth | 695/666mm |
| Lifting height | 515/555mm |
