Export Bulldozer HW34D
$0.00
Sales volume 388

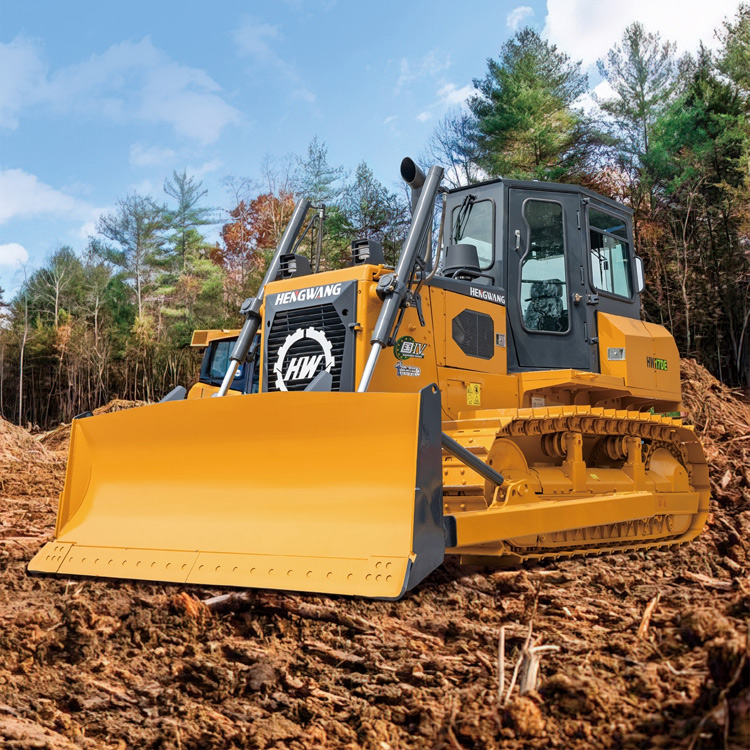

The HW17DE bulldozer is equipped with a high-power Weichai National lV engine, which is not only powerful but also hasexcellent environmental protection performance. lts reinforced chassis, arm and blade are capable of handling the most arduousarge-scale obstacle operations. The thickened blade and the plated arm effectively enhance the strenath and durability. Thisbulldozer is extremely suitable for heavy mining and is one of the best-selling products of Hengwang in Africa, where large-scalemining prevails.
| Operating weight (without scarifier) | 17120kg |
| Minimum turning radius | 4108mm |
| Grounding length | 2635mm |
| Ground specific pressure | 0.054kpa |
| Engine model | WP9HG190E474 |
| Rated power/Rated speed | 140/1900kw/rpm |
| Overall Dimensions | 5450*3452*3200mm |
| Ground clearance | 400mm |
| Track center distance | 1880mm |
| Track shoe width | 510/560/610mm |
| Number of track shoes (one side/piece) | 39 |
| Chain track pitch | 203 |
| Number of rollers (one side) | 2 |
| Number of supporting wheels (one side) | 7 |
| Fuel tank | 345L |
| Working hydraulic tank | 75L |
| Forward speed | F1:0-3.5km/h F2:0-6.2km/h F3:0-10.6km/h |
| Reverse speed | R1:0-4.5km/h R2:0-8.0km/h R3:0-13.1km/h |
