Export Bulldozer HW22D
Original price:$0.00
$0.00
Freight
Ocean shipping, Land transportation
Quantity
Product details

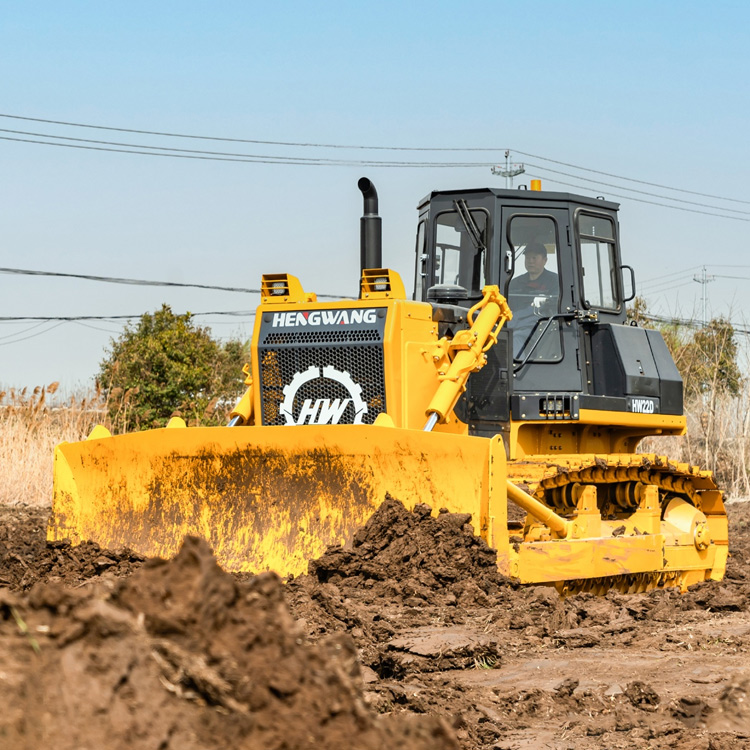

The HW22D buldozers have reinforced chassis, arms, and blades, which can handle the most challenging large obstacles, such aslarge rocks and boulders, The blade is thicker, and the arm coating is improved to enhance strenath and durability. it is particularlysuitable for heavy mining applications. It is one of the best-seling products of Hengwang in Africa, where large-scale mining isprevalent.


Working weight23450(  With tow frame) KG
Minimum turning radius3300mm
Ground specific pressure0.077kpa
Engine modelCummins NT885-C280S10
Rated power/Rated speed175/1800kw/rpm
Overall Dimensions5750*3725*3402mm
Ground clearance405mm
Track center distance2000mm
Track shoe width560mm
Number of track shoes (one side/piece)38
Chain track pitch215.9mm
Number of rollers (one side)2
Number of supporting wheels (one side)6
Forward speedF1:0-3.6km/h

F2:0-6.5km/h

F3:0-11.2km/h

Reverse speedR1:0-4.3km/h

R2:0-7.7km/h

R3:0-13.2km/h

Fuel tank450L
Working hydraulic tank110L
