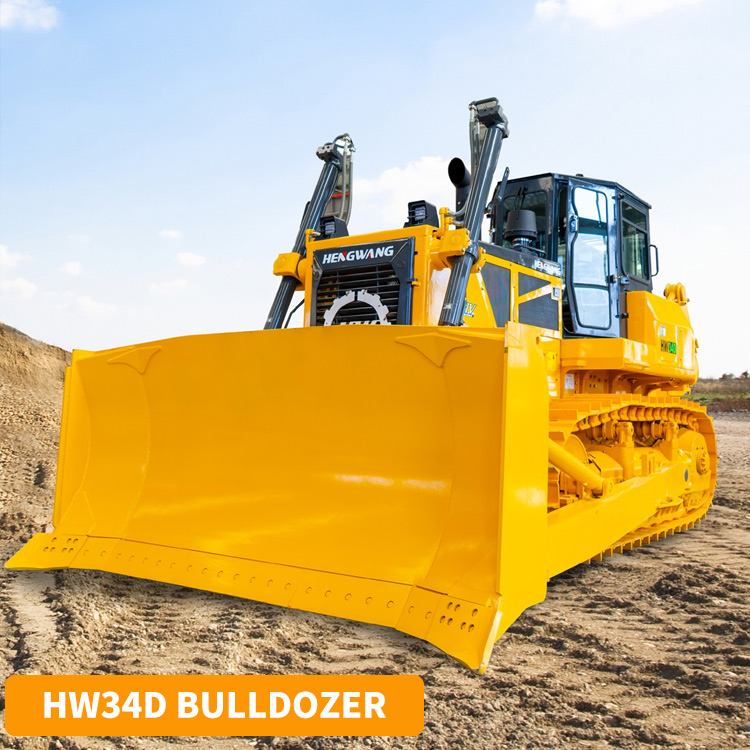

Export Bulldozer HW34D
$0.00
Sales volume 388
The HW24DE buldozer is equipped with a high-power Weichai National lV engine, which is not only powerful but also hasexcellent environmental protection performance. lts reinforced chassis, arm and blade are capable of handling the most arduouslarge-scale obstacle operations. The thickened blade and the plated arm efectively enhance the strength and durability. Thisbulldozer is extremely suitable for heavy mining and is one of the best-selling products of Hengwang in Africa, where large-scalemining prevails.
| Model | HW24DE |
| working weight | 24300kg |
| Minimum turning radius | 3120mm |
| Ground specific pressure | 0.062kpa |
| Engine model | Weichai WP13G271E471 |
| Rated power/Rated speed | 199/1900kw/rpm |
| Overall Dimensions | 5980*3642*3460mm |
| Track center distance | 2000mm |
| Track shoe width | 560/610/660mm |
| Number of track shoes (one side/piece) | 41 |
| Chain track pitch | 216 |
| Number of rollers (one side) | 2 |
| Number of supporting wheels (one side) | 7 |
| Ground clearance | 405 |
| Fuel tank | 480 |
| Working hydraulic tank | 110 |
| Shovel type | Straight tilting shovel/half U version shovel/U version shovel |
| Blade quality | 3239/2958/3500kg |
| Blade width | 3642/3723/3795mm |
| Blade height | 1577/1380/1406mm |
| Lifting height | 1210mm |
| Cutting depth | 540mm |
| Scarifier type | single tooth/three tooth |
| Scarifier quality | 2900kg |
| Maximum Loosening Depth | 695/666mm |
| Lifting height | 515/555mm |
