Main features and advantages:
● Outstanding reliability and durability:

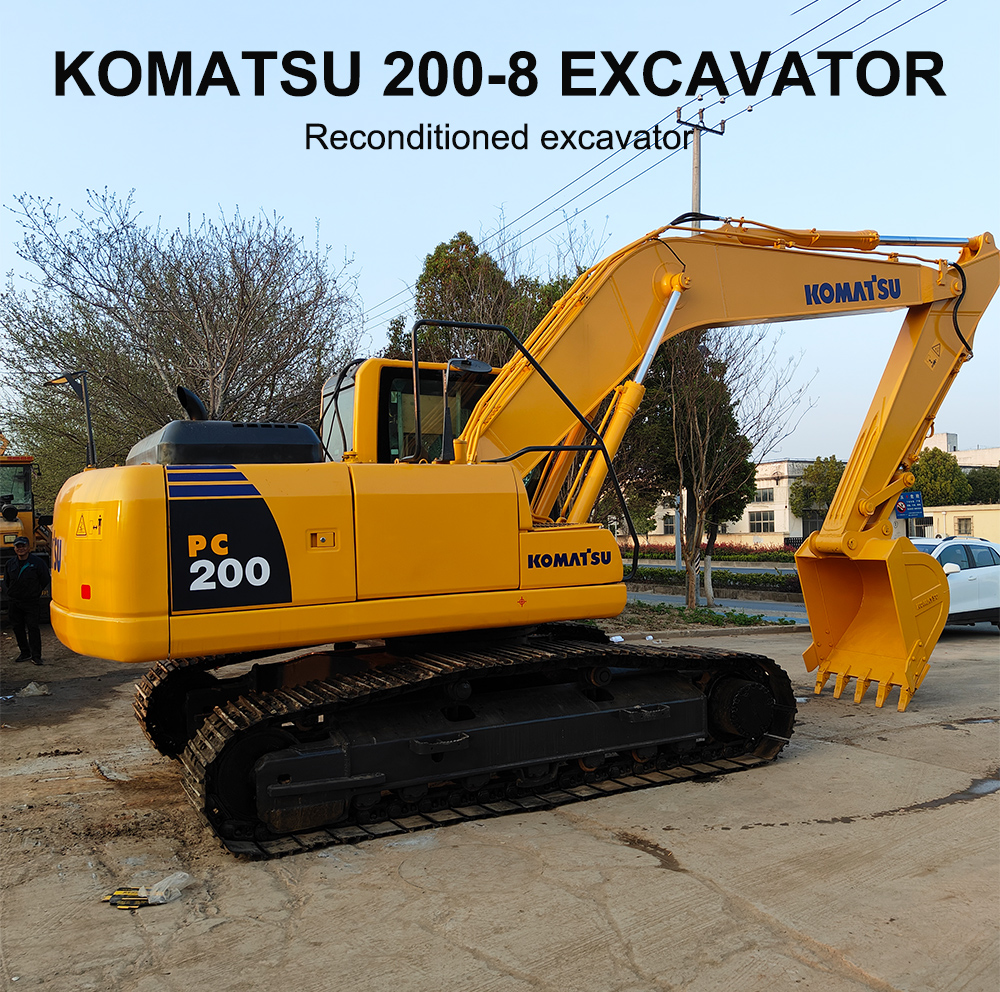

This is the core reputation of the PC200-8. The structural (chassis, boom) are solid, and the engine and hydraulic system are long-lasting with a relatively low failure rate, making it particularly suitable for high-intensity continuous operation harsh working conditions (such as mines).
● Strong digging force and high work efficiency:
It has a leading digging force in the same class, especially the bucket digging force, makes it perform efficiently in digging hard soil, rubble, and truck loading.It provides precise controllability, good coordination of composite actions, high fuel efficiency (standard of its era).
● High cost-performance and resale value:
As a classic model with a large number of holdings, its initial purchase costespecially for used machines), maintenance cost, and spare parts cost are relatively controllable and transparent. The resale value of used machines is relatively high.
● Wide applicability It is a true "versatile"
Applicable to:
•Earthwork excavation and transportation •Mining excavation and truck loading •Road construction (subgrade,) •Large-scale building foundation engineering •River channel dredging •Building demolition (need to be equipped with a breaker and other accessories
| Overall working weight (kg): | 19900 |
| Bucket capacity (cu.m): | 0.8 |
| Lifting arm length (mm): | 5700 |
| Bucket arm length (mm): | 2925 |
| Rotating speedrpm): | 12.4 |
| Travel speed(Km/h): | 3.0/4.1/5.5 |
| Climbing ability (%): | 70/35* |
| Ground pressure(Kpa): | 44.1 |
| Bucket digging force (kN): | 149 |
| Bucket arm digging force (N): | 10800% |

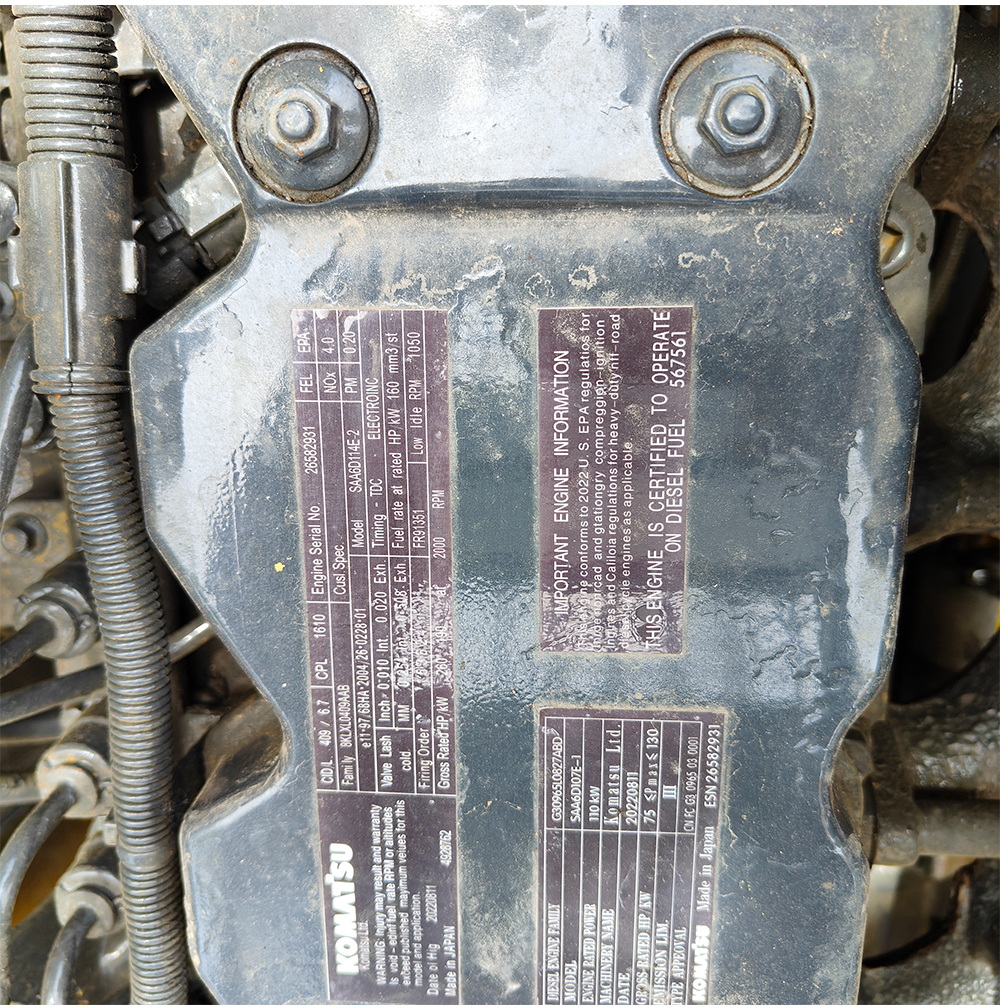

| Engine model: | KOMATSU SAA4D107E-1 |
| Rated power (Kw/rpm): | 110/2000 |
| Displacement (L): | 6.69 |
| Cooling method: | water cooling |
| Fuel tank (L): | 400 |
| Hydraulic oil tank (L): | 135 |
